Frame/bodywork for GILERA PIAGGIO VESPA MP3 500 Business ABS E4 from 2018

Frame/bodywork

1

Cadre avec p.i.

1B0063495

$918,03 Unit Price incl. VAT

1

Cadre avec pièces internes

1B0071545

Not Available

1

Cadre avec p.i.

1B0051855

Not Available

2

Support avant avec pièces internes

1B0059555

$201,67 Unit Price incl. VAT

3

Hex screw M8x22

031119

$3,65 Unit Price incl. VAT

4

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

5

Flat washer 8,4x18x2

003038

$0,25 Unit Price incl. VAT

6

Screw m6x12

031086

$0,08 Unit Price incl. VAT

7

Notched washer 6,6x11x0

012533

$0,67 Unit Price incl. VAT

8

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

9

Front sub-chassis strut

6227795

$118,20 Unit Price incl. VAT

10

Hex screw M8x22

031119

$3,65 Unit Price incl. VAT

11

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

12

Flat washer 8,4x18x2

003038

$0,25 Unit Price incl. VAT

13

Pipes connection cross pin

6234865

$128,80 Unit Price incl. VAT

14

Hex screw M8x30

031122

$2,95 Unit Price incl. VAT

15

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

16

Flat washer 8,4x18x2

003038

$0,25 Unit Price incl. VAT

17

Goupille d'appui de repose-pieds D

1B0063505

$16,83 Unit Price incl. VAT

17

Right footrest support cross pin

CM2614015

$49,04 Unit Price incl. VAT

18

Left footrest support cross pin

CM2614025

$49,04 Unit Price incl. VAT

19

screw M6x16

031088

$0,17 Unit Price incl. VAT

20

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

21

Flat washer 16x6,5x1,5

013880

$0,08 Unit Price incl. VAT

22

Diaphragm

1B001673

$18,75 Unit Price incl. VAT

23

Flat washer 8,4x18x2

003038

$0,25 Unit Price incl. VAT

24

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

25

Screw m8x18 zn

031117

$0,19 Unit Price incl. VAT

26

Small carrier connector front pipe

653294

$18,75 Unit Price incl. VAT

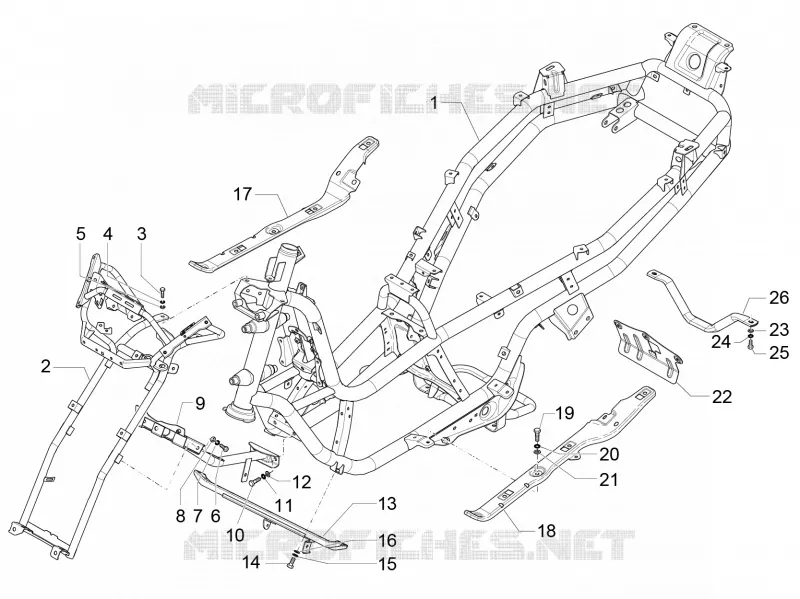

Find the detailed Frame/bodywork GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
