Cooling system for GILERA PIAGGIO VESPA MP3 500 Business ABS E4 from 2018

Cooling system

1

Water cooler

1B001908

$262,83 Unit Price incl. VAT

2

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

3

Spring plate M6

254485

$0,34 Unit Price incl. VAT

4

Lower rubber

258904

$0,25 Unit Price incl. VAT

5

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

6

Hose clamp

CM001915

$1,03 Unit Price incl. VAT

7

Electric fan assy.

58211R

$69,69 Unit Price incl. VAT

8

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

9

Spring plate M6

254485

$0,34 Unit Price incl. VAT

10

Radiator-head pipe fitting link

652619

$67,48 Unit Price incl. VAT

11

Pump-radiator pipe fitting

1B001992

$100,52 Unit Price incl. VAT

12

Hose clamp

CM001908

$3,65 Unit Price incl. VAT

13

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

14

Hose clamp

CM001907

$0,84 Unit Price incl. VAT

15

Manifold-union breather pipe

622581

$8,16 Unit Price incl. VAT

16

Cooler-expansion tank pipe

622582

$7,23 Unit Price incl. VAT

17

Hose clamp

CM001903

$0,84 Unit Price incl. VAT

18

Hose clamp

CM001904

$0,75 Unit Price incl. VAT

19

Coolant tank

653463

Not Available

20

Expansion tank plug

623673

$15,97 Unit Price incl. VAT

21

Self-tap screw

CM178604

$0,08 Unit Price incl. VAT

22

Spring plate

CM017410

$0,34 Unit Price incl. VAT

23

Lower rubber

258904

$0,25 Unit Price incl. VAT

24

Non return spring

CM006902

$0,92 Unit Price incl. VAT

25

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

26

Non return spring

CM017808

$4,82 Unit Price incl. VAT

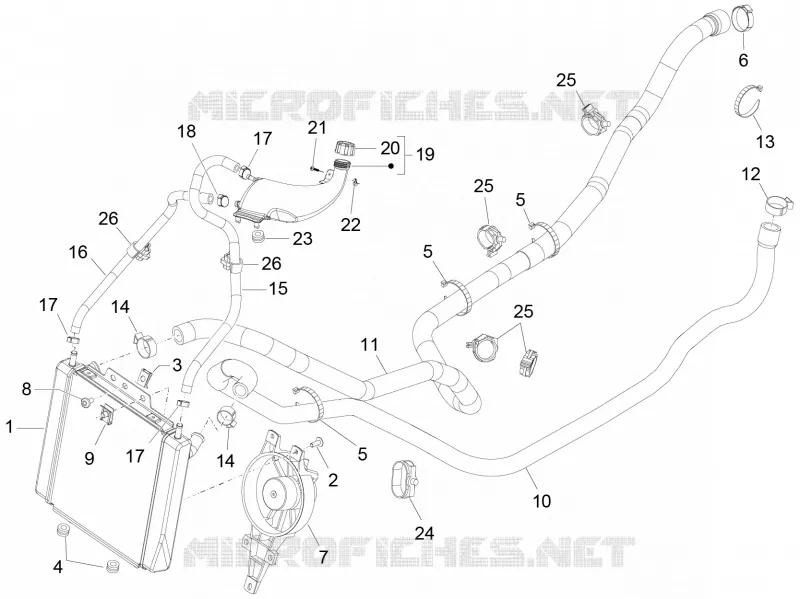

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
