1
Engine displacement
500
2
Model
MP3
3
Year
2018
4
Trim
MP3 500 Business ABS E4
5
Parts Catalog
Control pedals - Levers
6
Parts Diagram
Parts Catalog
LOCKS
by
Cdi magneto assy
Control pedals - Levers
1
2A
2A
2B
2B
3A
3B
4
5
5
6
6
6
6
7
7
8
9
9
10
10
11
12
13
14
15A
15B
16A
16B
17A
17B
18
19
20
21
22
23
24
24
25
26
27
28
29
30
30
31
32
33
34
35
35
35
35
35
36
36
36
36
36
36
36
37
37
38
1
Brake m.cyl.
CM082902
$179,38 Unit Price incl. VAT
2A
Pump support bracket complete with brake pedal
665581
$154,47 Unit Price incl. VAT
2B
Bride de support de maître-cylindre avec pédale de frein
1C004867
$110,05 Unit Price incl. VAT
2B
Bride de support de maître-cylindre avec pédale de frein
1C004393
$103,59 Unit Price incl. VAT
3A
Bellows
651044
$10,00 Unit Price incl. VAT
3B
Soufflet
1B006345
$7,34 Unit Price incl. VAT
4
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
5
Flat washer
178790
$0,51 Unit Price incl. VAT
6
Bush
650636
$3,65 Unit Price incl. VAT
7
Spring
650670
$1,54 Unit Price incl. VAT
8
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
9
Pin
650651
$5,38 Unit Price incl. VAT
10
Split pin
012761
$1,55 Unit Price incl. VAT
10
Goupille
1C004752
$0,66 Unit Price incl. VAT
11
BREAK PIPES
650722
$54,15 Unit Price incl. VAT
12
Vis bride
1C001475
$0,22 Unit Price incl. VAT
13
Hex socket screw M8x16
031116
$3,70 Unit Price incl. VAT
14
Low self-locking nut
709052
$1,10 Unit Price incl. VAT
15A
Pedal fork with U.P.
650711
$8,65 Unit Price incl. VAT
15B
Fourchette de pédale avec pièces internes
1C004851
$17,79 Unit Price incl. VAT
16A
Brake pedal rubber
228793
$4,62 Unit Price incl. VAT
16B
Protection pédale frein
1B006304
$3,56 Unit Price incl. VAT
17A
screw
582469
$3,65 Unit Price incl. VAT
17B
Vis bride
1C001475
$0,22 Unit Price incl. VAT
18
Self locking nut M6
195482
$0,19 Unit Price incl. VAT
19
Brake oil tank
274598
$9,00 Unit Price incl. VAT
20
Cover
498431
$8,31 Unit Price incl. VAT
21
BREAK PIPES
650721
$26,65 Unit Price incl. VAT
22
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
23
Spring plate
CM017409
$0,08 Unit Price incl. VAT
24
Anti-tilting device oil pump tank return pipe
650772
$13,53 Unit Price incl. VAT
24
Tuyau de retour du réservoir d'huile à la pompe du dispositif antiroulis
1C004657
$1,28 Unit Price incl. VAT
25
Hose clamp
CM002905
$0,42 Unit Price incl. VAT
26
Hose clamp
CM002907
$0,42 Unit Price incl. VAT
27
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
28
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
29
Pressure adjusting valve
CM082804
$100,11 Unit Price incl. VAT
30
Vis à tête hexagonale bridée M6x40
1C003711
$0,33 Unit Price incl. VAT
31
Bracket with up
2B000823
$17,83 Unit Price incl. VAT
32
Pressure adjusting valve
CM082806
$91,80 Unit Price incl. VAT
33
Distribution frame support bracket with U.P.
650648
$24,90 Unit Price incl. VAT
34
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
35
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
36
Gasket
127927
$0,25 Unit Price incl. VAT
37
Tuyau de frein
1C004440
$22,00 Unit Price incl. VAT
37
BREAK PIPES
650720
$21,98 Unit Price incl. VAT
38
stop Button
642032
$22,15 Unit Price incl. VAT

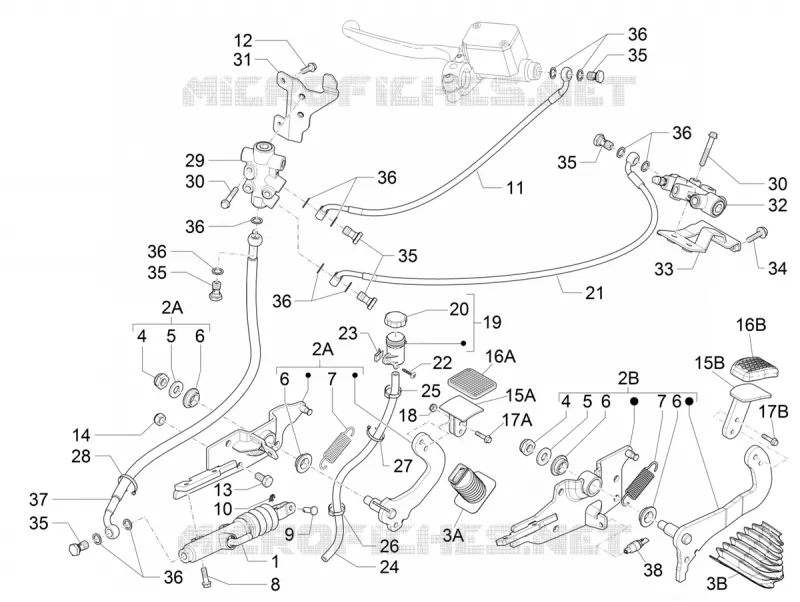

Find the detailed Control pedals - Levers GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
