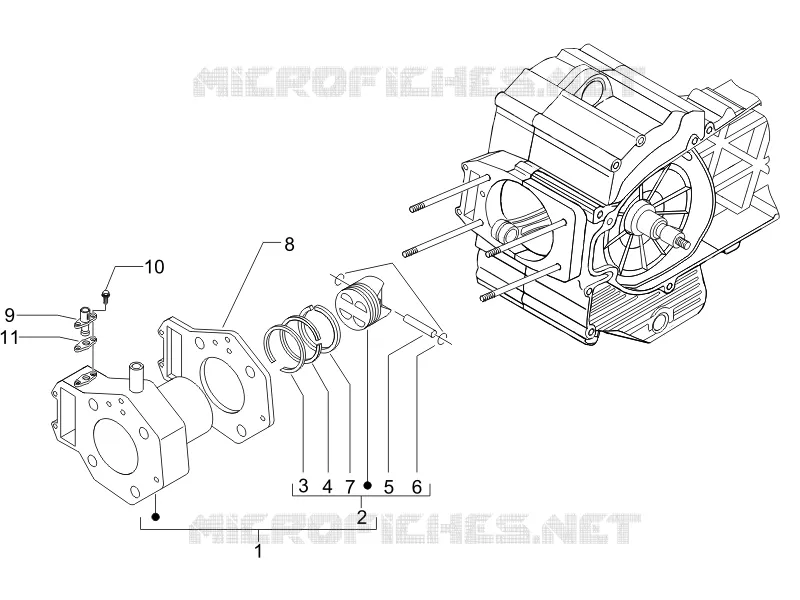

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
1
Cylinder with piston
873812
Not Available
1
Cylinder with piston
847419
Not Available
2
Piston assy cat.2
8738110002
Not Available
2
Piston assy cat.1
8738110001
Not Available
2
Piston assy cat.3
8738110003
Not Available
2
Piston assy cat.4
8738110004
Not Available
3
Ring
833450
$44,66 Unit Price incl. VAT
4
Oil scraper ring d.92
833451
$21,26 Unit Price incl. VAT
5
Piston pin
827820
$26,21 Unit Price incl. VAT
6
Stop ring
828116
$0,29 Unit Price incl. VAT
7
Oil scraper ring
833452
$23,22 Unit Price incl. VAT
8
Cylinder base gasket 0,6
830276
$4,32 Unit Price incl. VAT
8
Cylinder base gasket 0,4
830277
$3,49 Unit Price incl. VAT
8
Cylinder base gasket 0,8
830275
$4,46 Unit Price incl. VAT
9
Chain tensioner bracket
289919
Not Available
10
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
11
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
