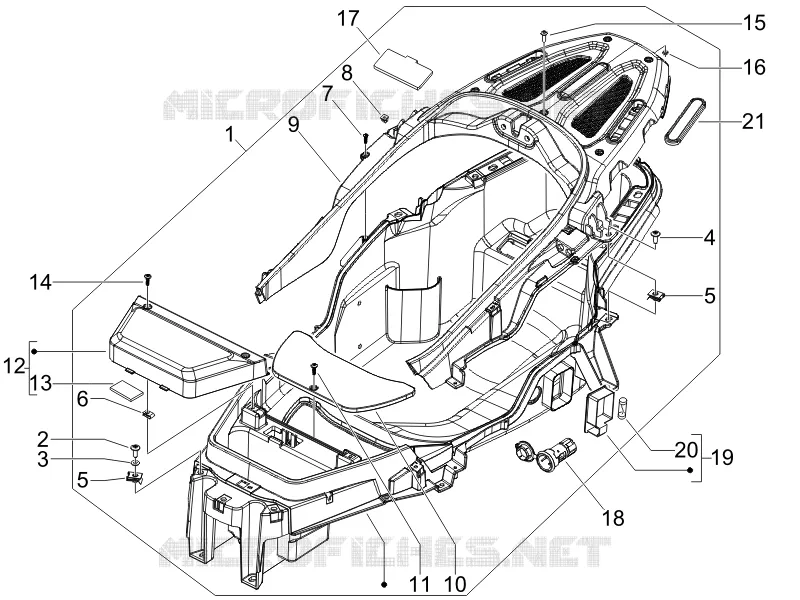

Helmet huosing - Undersaddle
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Helmet holder assembly
653442
$189,97 Unit Price incl. VAT
2
Screw M6x16
272836
$3,70 Unit Price incl. VAT
3
Washer
297029
$3,70 Unit Price incl. VAT
4
Screw M6x16
272836
$3,70 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Spring plate
CM017410
$0,34 Unit Price incl. VAT
7
Self tapping screw M4x16
267115
$2,99 Unit Price incl. VAT
8
Expansion plug
199190
$2,95 Unit Price incl. VAT
9
Upper part helmet compartment
653443
Not Available
10
Injection unit access cover
623599
$29,21 Unit Price incl. VAT
11
Self tapping screw
270723
Not Available
12
Complete battery cover
653707
$17,83 Unit Price incl. VAT
13
Pad
575329
Not Available
14
Self tapping screw
270723
Not Available
15
screw M6x16
624995
$3,70 Unit Price incl. VAT
16
Nut
020006
$0,34 Unit Price incl. VAT
17
Type-testing inspection door
576793
$5,38 Unit Price incl. VAT
18
LV socket 12V
294770
$17,07 Unit Price incl. VAT
19
Ceiling bowl
293154
$10,35 Unit Price incl. VAT
20
Torpedo shaped lamp 12V-5W
071633
$8,81 Unit Price incl. VAT
21
Protective buffer
653428
$8,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
