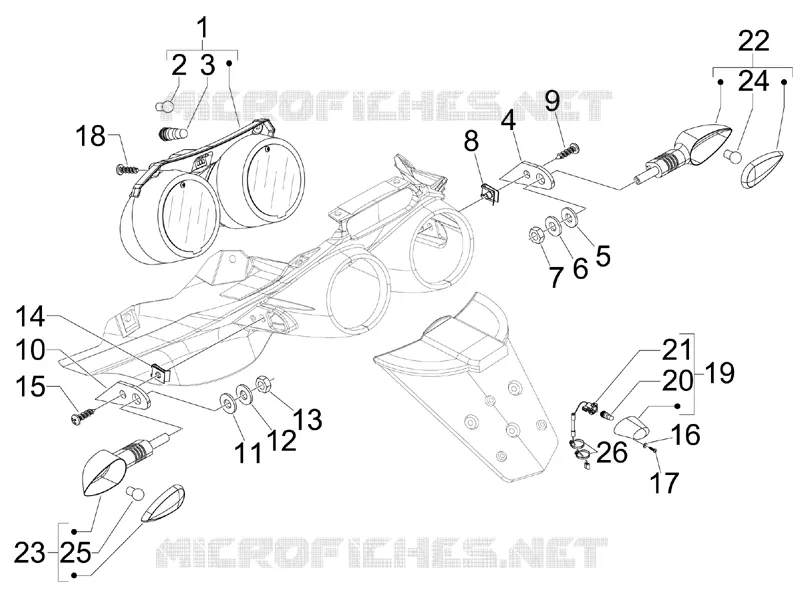

Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
25
26
1
Taillight
640544
$79,10 Unit Price incl. VAT
2
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
3
Lamp 12V-5W
292022
Not Available
4
Right rear indicator base plate
653702
$12,62 Unit Price incl. VAT
5
Plain washer 10,4x18x2
016626
$0,08 Unit Price incl. VAT
6
Washer
012535
$0,08 Unit Price incl. VAT
7
Nut
021210
$0,16 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Screw M6x16
272836
$3,70 Unit Price incl. VAT
10
Left rear indicator base plate
653701
$22,67 Unit Price incl. VAT
11
Plain washer 10,4x18x2
016626
$0,08 Unit Price incl. VAT
12
Washer
012535
$0,08 Unit Price incl. VAT
13
Nut
021210
$0,16 Unit Price incl. VAT
14
Spring plate M6
254485
$0,34 Unit Price incl. VAT
15
Screw M6x16
272836
$3,70 Unit Price incl. VAT
16
Washer 4,3x8x0,5
003054
$0,08 Unit Price incl. VAT
17
Self tapping screw M4x16
267115
$2,99 Unit Price incl. VAT
18
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
19
Rear licence plate light
639088
$14,89 Unit Price incl. VAT
20
Lamp 12V-5W
292022
Not Available
22
Right rear and left front turn indicators
640244
Not Available
23
Left rear and right front turn indicators
640245
Not Available
24
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
25
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
26
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
