Wheel huosing - Mudguard FOR MP3 500 FROM 2009

Wheel huosing - Mudguard

1

Right front mudguard

650971

Not Available

1

Right front mudguard

665506

Not Available

1

Right front mudguard

649288

Not Available

1

Right front mudguard

666414

$78,24 Unit Price incl. VAT

2

Left mudguard pipe with U.P.

651228

$79,16 Unit Price incl. VAT

2

Pipe for left mudguard with U.P.

649257

$89,76 Unit Price incl. VAT

3

Pipe for right mudguard with U.P.

649284

$197,20 Unit Price incl. VAT

3

Right mudguard pipe with U.P.

665508

$79,16 Unit Price incl. VAT

4

Splash guard for mudguard

647987

Not Available

4

Splash guard for mudguard

665963

$38,43 Unit Price incl. VAT

5

Hex socket screw

564606

$0,28 Unit Price incl. VAT

6

Spring washer

709047

$0,08 Unit Price incl. VAT

7

Left front mudguard

649260

Not Available

7

Left front mudguard

666221

Not Available

7

Left front mudguard

651311

Not Available

7

Left front mudguard

650970

Not Available

8

Hex socket screw

650902

$3,65 Unit Price incl. VAT

9

Flat washer

827526

$0,25 Unit Price incl. VAT

11

Hex socket screw

564606

$0,28 Unit Price incl. VAT

12

Spring washer

709047

$0,08 Unit Price incl. VAT

13

Wheel compartment

623255

$76,85 Unit Price incl. VAT

14

Self-tap screw

576189

$0,05 Unit Price incl. VAT

15

screw

259577

$0,17 Unit Price incl. VAT

16

TBCIC Screw

270793

$0,08 Unit Price incl. VAT

17

Spring plate

CM017410

$0,34 Unit Price incl. VAT

18

Wheel housing central closing

654829

Not Available

19

TBCIC Screw

270793

$0,08 Unit Price incl. VAT

20

Self-tap screw

576189

$0,05 Unit Price incl. VAT

21

Spring plate

CM017410

$0,34 Unit Price incl. VAT

22

Wheel housing central part

623548

Not Available

23

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

28

Flat washer

827526

$0,25 Unit Price incl. VAT

29

Hex socket screw M5x10

651014

$0,17 Unit Price incl. VAT

30

Hex socket screw

650902

$3,65 Unit Price incl. VAT

31

Flat washer

827526

$0,25 Unit Price incl. VAT

33

Front bracket

651192

$5,38 Unit Price incl. VAT

34

Rear bracket

651271

$11,69 Unit Price incl. VAT

35

Self tapping screw

296141

$0,08 Unit Price incl. VAT

36

Front bracket

651192

$5,38 Unit Price incl. VAT

37

Rear bracket

651271

$11,69 Unit Price incl. VAT

38

Self tapping screw

296141

$0,08 Unit Price incl. VAT

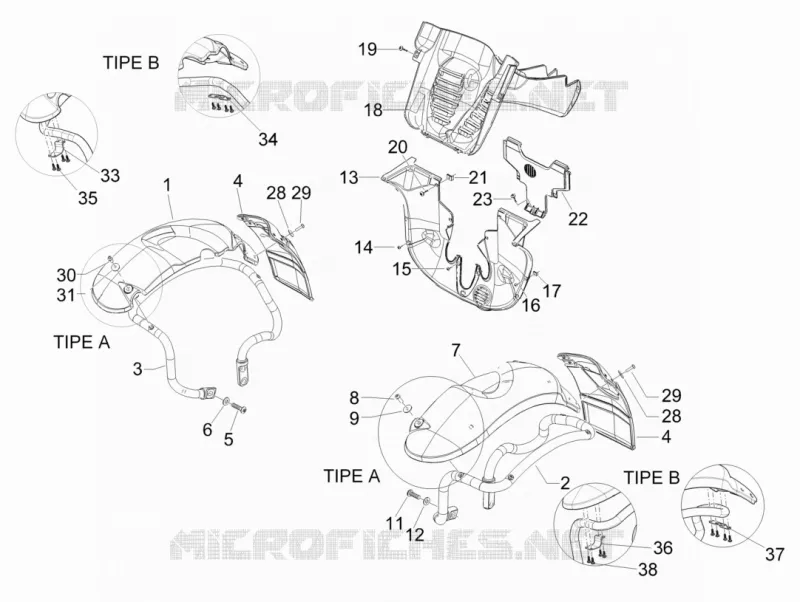

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
