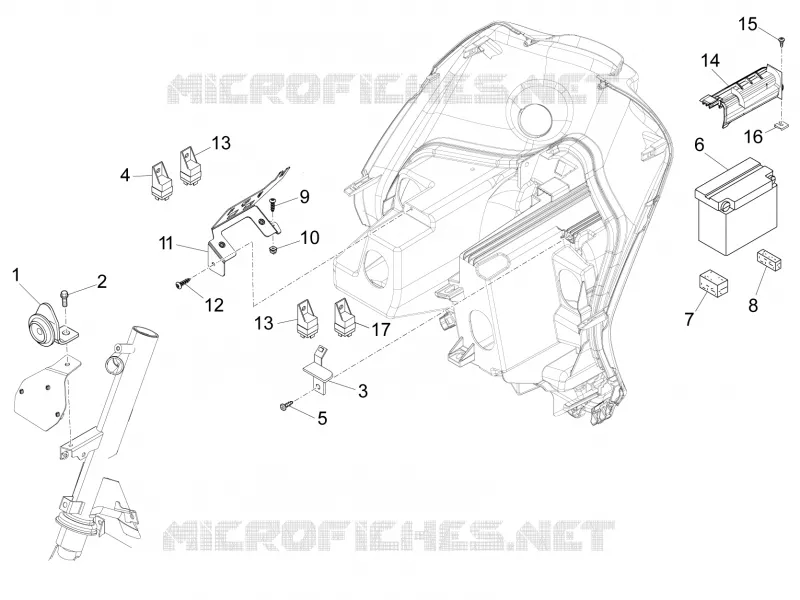

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
1
Horn 12v cc
CM087611
$15,66 Unit Price incl. VAT
1
Horn 12v cc
CM076811
Not Available
2
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
3
Electromagnetic switch support bracket
643219
$5,38 Unit Price incl. VAT
4
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
5
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
6
Battery (Yuasa) 12V-6Ah
584662
$246,89 Unit Price incl. VAT
7
Stop buffer
673704
$5,38 Unit Price incl. VAT
8
Stop buffer
673702
$5,38 Unit Price incl. VAT
9
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
10
Expansion plug
199190
$2,95 Unit Price incl. VAT
11
Bracket
680023
$2,68 Unit Price incl. VAT
12
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
13
Rem. control switch 12V-30A
642065
$10,76 Unit Price incl. VAT
14
Battery cover
673569
$7,69 Unit Price incl. VAT
15
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
16
Spring plate M6
254485
$0,34 Unit Price incl. VAT
17
Switch electromagnetic switch 12V-40/15A
292332
$21,37 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
