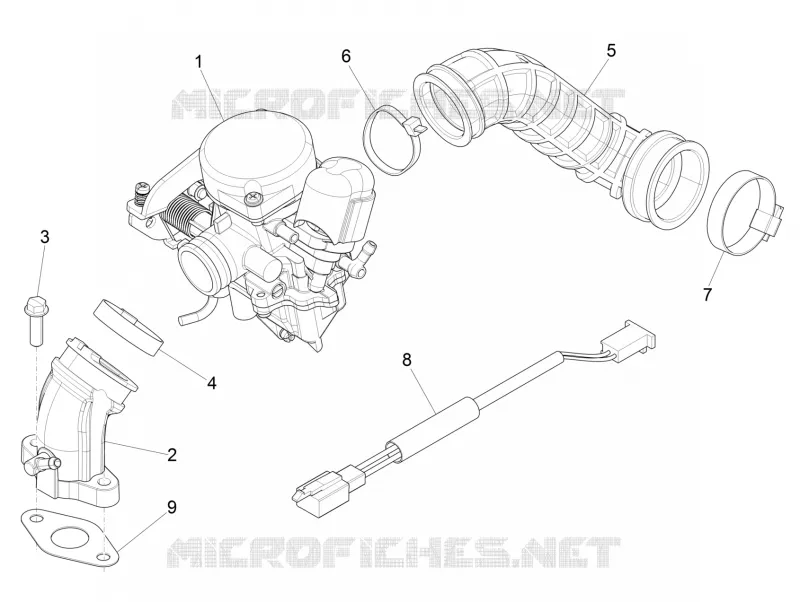

Carburettor, assembly - Union pipe
1
2
3
4
5
6
7
8
9
1
Carburettor
CM141914
$377,49 Unit Price incl. VAT
2
Union pipe
845946
$15,65 Unit Price incl. VAT
3
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
4
Hose clamp
709532
Not Available
5
Carburettor-air box hose
845489
$8,40 Unit Price incl. VAT
6
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
7
Hose clamp
709532
Not Available
8
Resistor Module
582619
$35,65 Unit Price incl. VAT
9
Induction joint gasket
1A008020
$1,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
