by

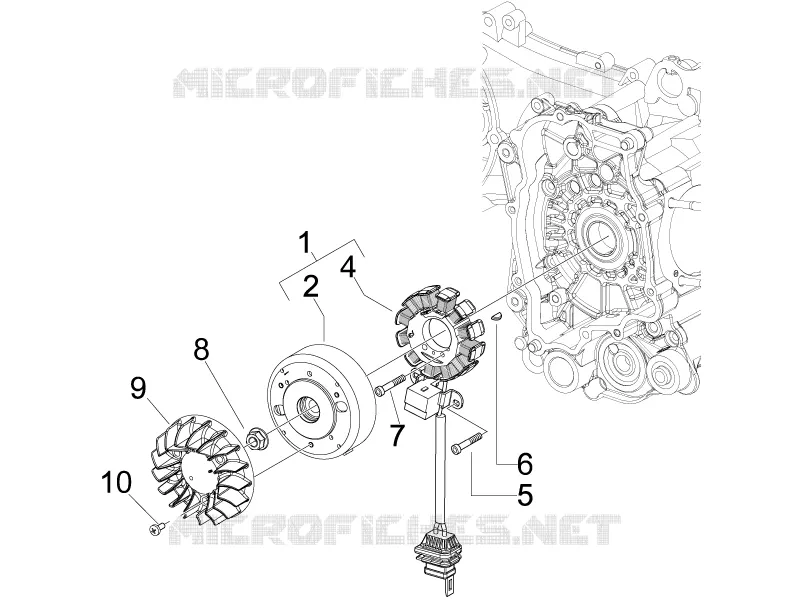

Flywheel magneto
1
2
4
5
6
7
8
9
10
1
Cdi magneto assy
9692975
Not Available
2
Rotor
969243
$29,86 Unit Price incl. VAT
4
Stator
969228
$30,37 Unit Price incl. VAT
5
Screw M5x14
873979
$0,34 Unit Price incl. VAT
6
Transmission key
000267
$1,19 Unit Price incl. VAT
7
screw M5x21
015856
$0,16 Unit Price incl. VAT
8
Flanged nut
289005
$2,99 Unit Price incl. VAT
9
Fan
830286
Not Available
10
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
