1
Engine displacement
50
2
Model
FLY
3
Year
2017
4
Trim
Fly 4T 2V 25-30Km/h
5
Parts Catalog

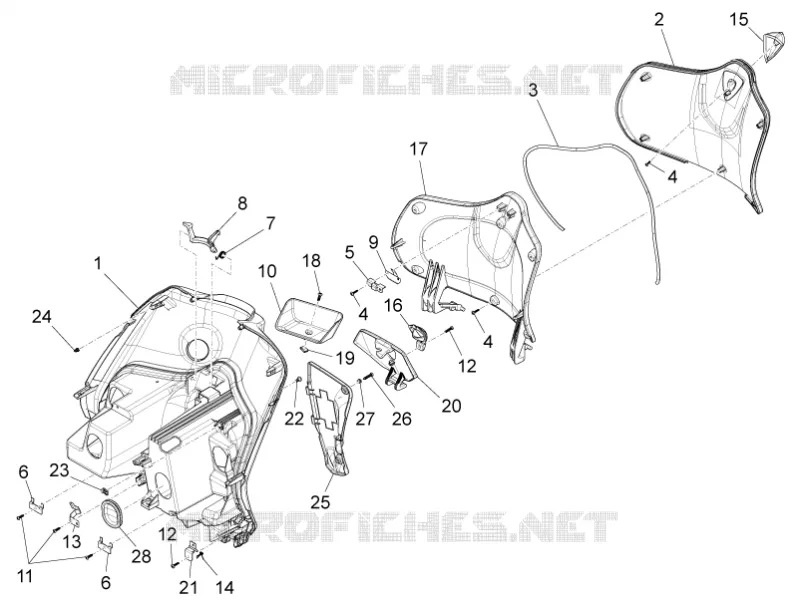

Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Rear wheel
by
Transmissions
Front glove-box - Knee-guard panel
1
2
3
4
4
4
5
6
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Front glove comp.
673082
Not Available
1
Front glove comp.
67308240XN
Not Available
1
Counter shield
5A0000400000C
$42,72 Unit Price incl. VAT
1
Red front top box
67308200XR
Not Available
2
Red glove compartment door
67308400XR
$30,12 Unit Price incl. VAT
2
Top case door
673084
$6,19 Unit Price incl. VAT
2
Top case door
67308440XN
$25,13 Unit Price incl. VAT
2
Top case door
5A0000420000C
$12,45 Unit Price incl. VAT
3
Top box weatherseal
CM016804
$5,38 Unit Price incl. VAT
4
Self tapping screw
297498
$0,08 Unit Price incl. VAT
5
Square
252420
$0,59 Unit Price incl. VAT
6
Door fixing bracket
257614
$1,09 Unit Price incl. VAT
7
Spring
257617
$4,89 Unit Price incl. VAT
8
Door closing hook
673692
$4,82 Unit Price incl. VAT
9
Locking plate
573057
$0,53 Unit Price incl. VAT
10
Rim
673696000C
$15,37 Unit Price incl. VAT
11
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
12
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
13
Spring plate
674527
$10,00 Unit Price incl. VAT
14
Door spring
781170
$0,17 Unit Price incl. VAT
15
Glove compartment door handle
673694
$6,30 Unit Price incl. VAT
16
Fuel flap handle
673695
$6,30 Unit Price incl. VAT
17
Counter flap
673085
$33,05 Unit Price incl. VAT
18
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
19
Spring plate
CM017410
$0,34 Unit Price incl. VAT
20
Fuel door
673086
Not Available
20
Fuel door
5A0000430000C
$5,38 Unit Price incl. VAT
20
Fuel door
67308640XN
Not Available
20
Red fuel door
67308600XR
$6,96 Unit Price incl. VAT
21
Door fixing bracket
673693
$0,55 Unit Price incl. VAT
22
screw
CM179202
$0,25 Unit Price incl. VAT
23
Spring plate M6
254485
$0,34 Unit Price incl. VAT
24
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
25
Battery access door
673690000C
$5,38 Unit Price incl. VAT
25
Battery access door
673690
Not Available
26
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
27
Expansion plug
199190
$2,95 Unit Price incl. VAT
28
Cover
673827
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
