by

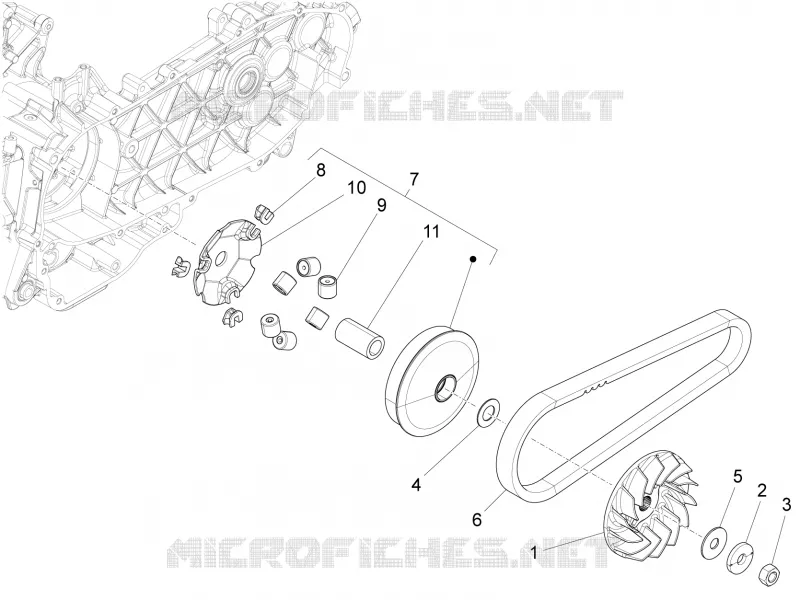

Driving pulley
1
2
3
4
5
6
7
8
9
10
11
1
Fixed driving half pulley
876921
$20,68 Unit Price incl. VAT
2
Belleville spring
880950
$2,69 Unit Price incl. VAT
3
Nut M12x1,25 - 6H
B016001
Not Available
4
Flat washer 32x17x1,3
B016003
Not Available
5
Flat washer
B016004
Not Available
6
(Mitsuboshi) V-belt
841213
$113,91 Unit Price incl. VAT
7
Complete roller housing
CM257703
$80,66 Unit Price incl. VAT
8
Sliding block
B017219
$2,19 Unit Price incl. VAT
9
roller complete
B019236
$4,32 Unit Price incl. VAT
10
Roller contrast
842204
$8,31 Unit Price incl. VAT
11
Spacer
483889
$19,92 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
