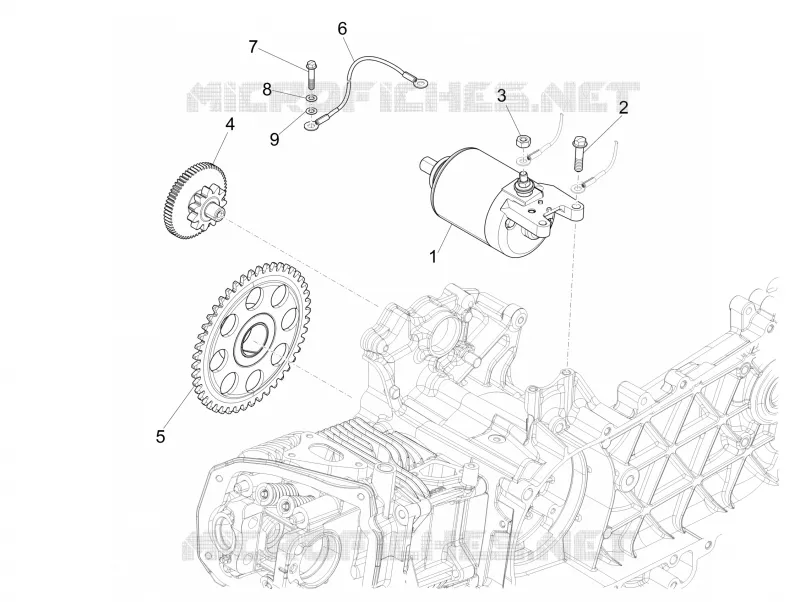

Stater - Electric starter
1
2
3
4
5
6
7
8
9
1
Starter motor
1D001647
$109,08 Unit Price incl. VAT
2
Screw w/ flange M6x25
1A000350
$2,25 Unit Price incl. VAT
3
Nut M6
020106
$0,08 Unit Price incl. VAT
4
Electric starter gear
880317
$27,49 Unit Price incl. VAT
5
Starter motor gear
B014165
$51,39 Unit Price incl. VAT
6
Earth braid
581309
$3,49 Unit Price incl. VAT
7
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
8
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
9
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
