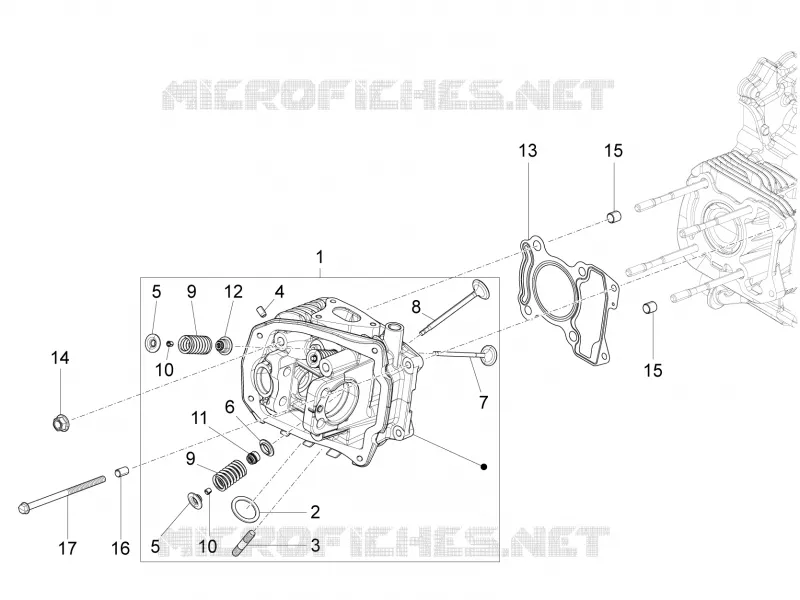

Head unit - Valve
1
2
3
4
5
5
6
7
8
9
9
10
10
11
12
13
14
15
15
16
17
1
Cylinder head assembly
1A006944
$443,88 Unit Price incl. VAT
2
Big end-silencer gasket
434716
$1,35 Unit Price incl. VAT
3
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
4
Plug M6x10
842360
$0,75 Unit Price incl. VAT
5
Upper cap
B013833
$1,26 Unit Price incl. VAT
6
Lower cap
483711
$1,35 Unit Price incl. VAT
7
Valve, in Ø 20
B019320
$8,24 Unit Price incl. VAT
8
Exaust valve Ø22
B013716
$26,82 Unit Price incl. VAT
9
Ext. valve spring
879456
$4,54 Unit Price incl. VAT
10
Half-cone
B015484
$0,92 Unit Price incl. VAT
11
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
12
Cup
843307
$2,77 Unit Price incl. VAT
13
Cylinder head gasket
1A000174
$3,28 Unit Price incl. VAT
14
Flanged nut M10x1,25
B015971
Not Available
15
Locating dowel
B015969
Not Available
16
Locating dowel
B015951
Not Available
17
screw TEF M6x110
1A000316
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
