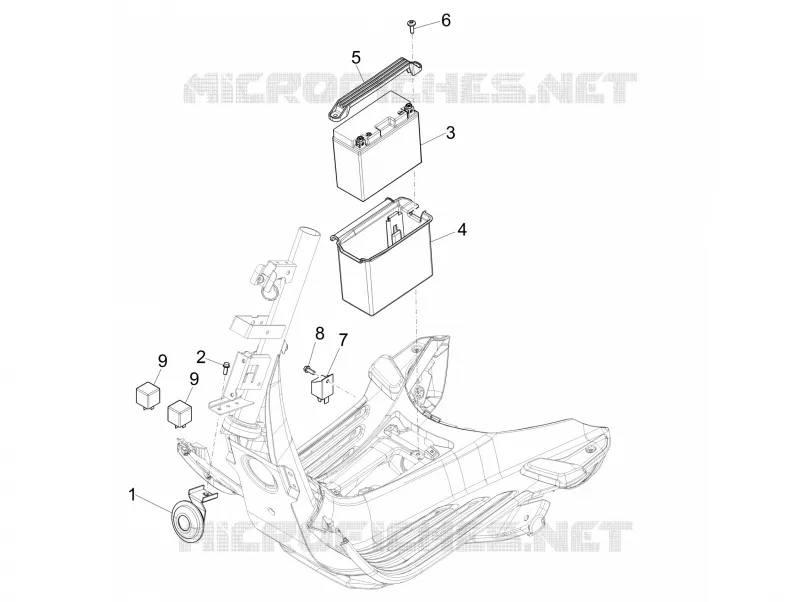

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
9
1
Horn
1D000636
$35,10 Unit Price incl. VAT
2
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
3
Battery 12V-6Ah
1D001965
Not Available
4
Battery holder tray
674059
$17,83 Unit Price incl. VAT
5
Battery clamp
1B000986
Not Available
6
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
7
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
8
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
9
Rem. control switch 12V-30A
642065
$10,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
