Frame/bodywork for GILERA PIAGGIO VESPA S 4T 2V E3 from 2011

Frame/bodywork

1

Painted body with u.p.

65624300DI

Not Available

1

Painted body with u.p.

6562435090

Not Available

1

Painted body with u.p.

65624300BR

Not Available

1

Cataphoresis body with U.P.

65624301

Not Available

1

Painted body with u.p.

65624300R7

Not Available

2

SUPPORTO SERRATURA

298604

$16,40 Unit Price incl. VAT

3

Body shield

6221145

Not Available

4

STAFFA FISSAGG.SUPER.CONTR.CON P.I.

654290

$8,65 Unit Price incl. VAT

5

VITE METRICA IMP. TORX(H=16)

CM179301

$0,25 Unit Price incl. VAT

6

PIASTRA

654282

$12,45 Unit Price incl. VAT

7

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

8

STAFFA CENTRALE FISS.CONTROSCUDO

654292

$5,38 Unit Price incl. VAT

9

VITE TESTA ESAGON.FLANG. M6X10

969296

$0,16 Unit Price incl. VAT

10

TAPPO

299557

$0,76 Unit Price incl. VAT

11

TAPPO

299558

$0,59 Unit Price incl. VAT

12

TAPPO

299559

$4,82 Unit Price incl. VAT

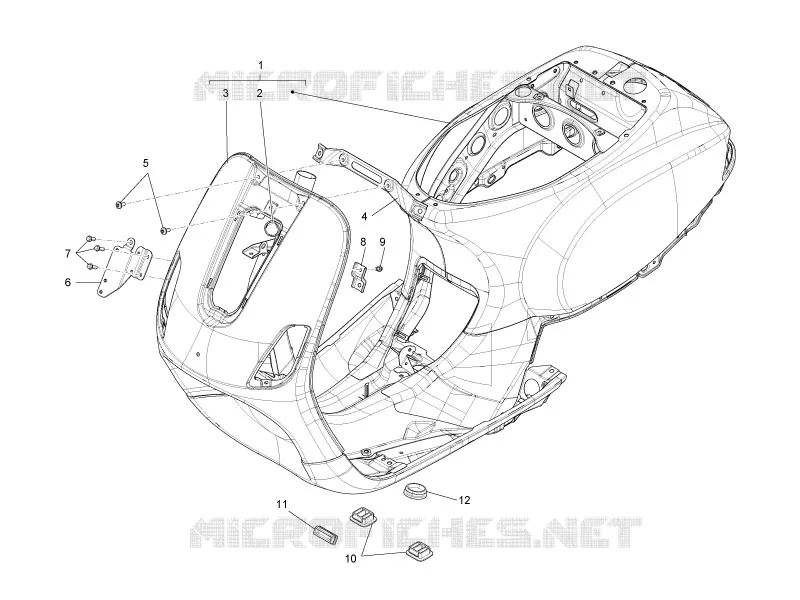

Find the detailed Frame/bodywork GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
