Flywheel magneto cover - Oil filter for GILERA PIAGGIO VESPA S 4T 2V E3 from 2011

Flywheel magneto cover - Oil filter

1

Air deflector

876918

Not Available

2

COPERCHIO CONVOGLIATORE

876919

$24,59 Unit Price incl. VAT

3

VITE AUTOFILETTANTE (3X20)

258146

$0,25 Unit Price incl. VAT

4

BOCCOLA FLANG. ZIGRINATA

843757

$1,44 Unit Price incl. VAT

5

Hex socket screw M5x25

486972

$0,09 Unit Price incl. VAT

6

VITE TCCIC M5X22 (5.8)

828662

$0,25 Unit Price incl. VAT

7

ROSETTA ELAST. "CONTACT"

828583

$0,08 Unit Price incl. VAT

8

FILTRO OLIO ASPIRAZIONE COMPL.

483841

$3,55 Unit Price incl. VAT

9

ANELLO OR 20,35X1,78

288474

$0,08 Unit Price incl. VAT

10

TAPPO FILTRO OLIO

826165

$5,88 Unit Price incl. VAT

11

GUARNIZIONE OR 31,47x1,78

285536

$0,92 Unit Price incl. VAT

12

Oil filter

82635R

$12,36 Unit Price incl. VAT

13

VITE SPECIALE FILTRO OLIO

483776

$1,49 Unit Price incl. VAT

14

Oil pressure sensor

641541

Not Available

15

ROSETTA (16X10.5X2.5)

486075

$1,58 Unit Price incl. VAT

16

FASCETTA

825481

$3,38 Unit Price incl. VAT

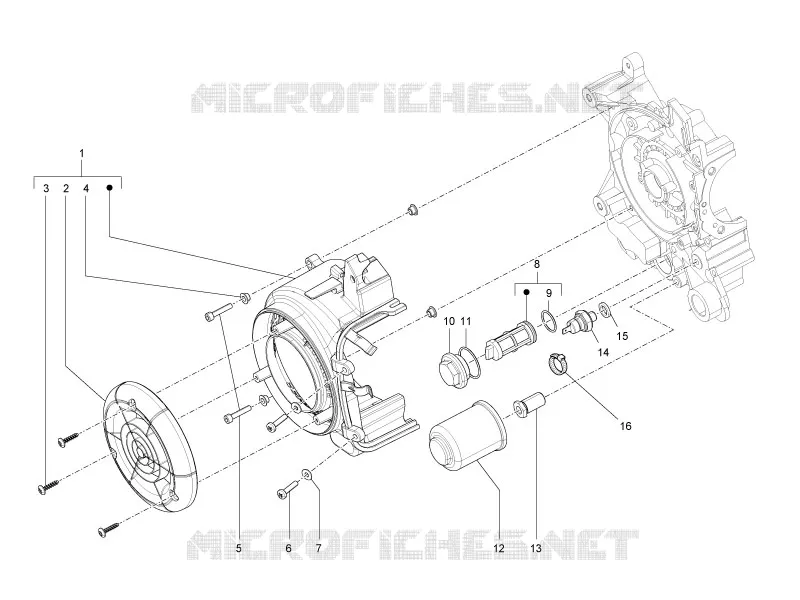

Find the detailed Flywheel magneto cover - Oil filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
