1
Engine displacement
125
2
Model
S
3
Year
2011
4
Trim
S 4T 2V E3
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Reduction unit
by
Swinging arm
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
GHIERA TUBO STERZO
0111094
$2,60 Unit Price incl. VAT
2
RONDELLA DELLO STERZO
0037514
$1,51 Unit Price incl. VAT
3
Upper thrust ring
650693
Not Available
4
Lower steering bearing
650075
Not Available
5
Not available
560286
Not Available
6
ANELLO DI TENUTA
177494
$1,85 Unit Price incl. VAT
7
Drawn cap
177436
$9,18 Unit Price incl. VAT
8
Front wheel hub
560284
Not Available
9
ANELLO ELASTICO
006635
$0,25 Unit Price incl. VAT
10
CUSCINETTO
177610
$8,41 Unit Price incl. VAT
11
Front wheel hub
560284
Not Available
12
CORONA DENT. PRESA MOV.TO CONT.KM
267818
$33,03 Unit Price incl. VAT
13
ASTUCCIO A RULLINI
177442
$4,04 Unit Price incl. VAT
14
DISCO FRENO
56395R
$21,87 Unit Price incl. VAT
15
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
16
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
17
ANELLO DI TENUTA
177443
$1,77 Unit Price incl. VAT
18
DADO ESAGONALE NORMALE
021114
$0,51 Unit Price incl. VAT
19
CAPPELLOTTO
177609
$2,19 Unit Price incl. VAT
20
COPIGLIA
012789
$0,16 Unit Price incl. VAT
21
Cover
092517
Not Available
22
ANELLO ELASTICO PER ALBERO
006422
$0,16 Unit Price incl. VAT
23
RONDELLA
177414
$0,75 Unit Price incl. VAT
24
ANELLO DI TENUTA
177521
$0,66 Unit Price incl. VAT
25
RONDELLA
177445
$0,34 Unit Price incl. VAT
26
ANELLO O.R.
177408
$0,08 Unit Price incl. VAT
27
Front suspension arm cover
561433
Not Available
28
ROCCHETTO PRESA MOVIMENTO CONTAKM
267819
$7,69 Unit Price incl. VAT
29
VITE T.E. M5X16
031058
$2,95 Unit Price incl. VAT
30
RONDELLA ONDULATA (5,3X10X0,5)
006975
$0,17 Unit Price incl. VAT
31
Arm complete steering tube
648413
Not Available
32
BRACCIO SOSPENSIONE SX CON P.I.
6483975
$109,60 Unit Price incl. VAT
33
BOCCOLA A RULLINI
198513
$5,97 Unit Price incl. VAT
34
ANELLO DI TENUTA
119219
$0,67 Unit Price incl. VAT
35
SPINOTTO
177451
$3,03 Unit Price incl. VAT
36
GUARNIZIONE
006731
$0,34 Unit Price incl. VAT
37
AMMORTIZZATORE ANTERIORE COMPL.
665766
$67,39 Unit Price incl. VAT
37
KAYABA cpl. front shock absorber
649458
Not Available
38
VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8
149104
$0,51 Unit Price incl. VAT
39
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
40
TAMPONE PER ATTACCO AMMORTIZZATORE
174874
$2,36 Unit Price incl. VAT
41
TAMPONE PER ATTACCO AMMORTIZZATORE
174085
$1,18 Unit Price incl. VAT
42
RONDELLA
174088
$0,84 Unit Price incl. VAT
43
ROSETTA ELASTICA CON DENTATURA
012535
$0,08 Unit Price incl. VAT
44
DADO ESAGONALE BASSO
021210
$0,16 Unit Price incl. VAT
45
MENSOLA ATTACCO AMMORTIZZ.CON P.I.
601556
$7,73 Unit Price incl. VAT
46
STAFFA SUPPORTO TUBAZIONE FRENO
665701
$5,38 Unit Price incl. VAT
47
VITE A TESTA ESAGONALE GAMBO FILETTATO
031120
$0,42 Unit Price incl. VAT
48
RONDELLA ELASTICA
016408
$0,08 Unit Price incl. VAT
49
DADO ESAGONALE M8 6H H=6,5
020108
$0,08 Unit Price incl. VAT
50
COPRISOSPENSIONE
654268
$6,30 Unit Price incl. VAT
51
VITE METRICA(IMPRONTA TORX)
CM179201
$0,34 Unit Price incl. VAT

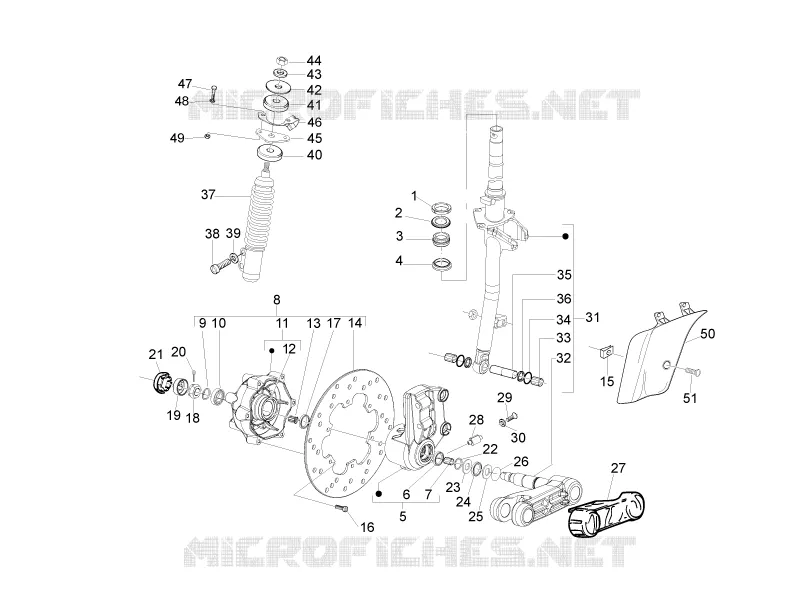

Find the detailed Fork/steering tube - Steering bearing unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
