Remote control switches - Battery - Horn for GILERA PIAGGIO VESPA S 4T 2V E3 from 2011

Remote control switches - Battery - Horn

1

BATTERIA YUASA YTX12-BS(12V-10AH)

583158

$278,17 Unit Price incl. VAT

2

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

3

CLACSON

1D000636

$35,10 Unit Price incl. VAT

4

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

5

STAFFA SUPPORTO FUSIBILI

642076

$6,30 Unit Price incl. VAT

6

Rem. control switch 12V-30A

58099R

$36,86 Unit Price incl. VAT

7

TELERUTTORE 12V-80A

58115R

$9,18 Unit Price incl. VAT

8

PIASTRINA

641955

$3,65 Unit Price incl. VAT

9

VITE A TESTA ESAGONALE FLANGIATA

484123

$0,16 Unit Price incl. VAT

10

PIASTRINA ELASTICA

248419

$0,67 Unit Price incl. VAT

11

FASCETTA

641764

$0,25 Unit Price incl. VAT

12

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

13

MOLLETTA PER CONNETTORE

641599

$4,82 Unit Price incl. VAT

14

Turn indicator control

640289

Not Available

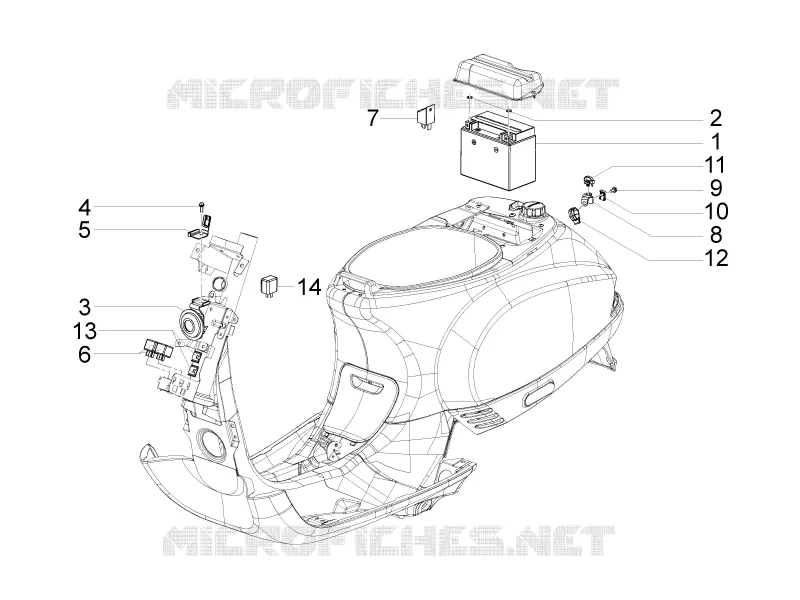

Find the detailed Remote control switches - Battery - Horn GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
