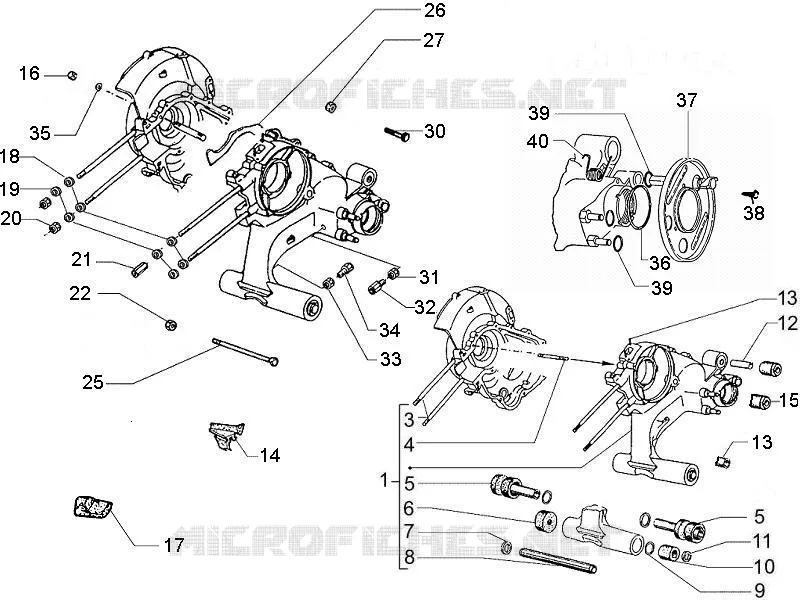

Crankcase
1
3
4
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
25
26
30
31
32
33
34
35
36
37
38
39
39
40
1
Crankcase assembly
8410315
Not Available
3
Stud bolt
150656
$8,01 Unit Price incl. VAT
4
Stud bolt
003972
$3,65 Unit Price incl. VAT
6
Ring
059589
$6,67 Unit Price incl. VAT
7
Ring
047945
$8,01 Unit Price incl. VAT
8
pipe
047944
$10,92 Unit Price incl. VAT
9
Ring
059590
$2,95 Unit Price incl. VAT
10
Ring
059588
Not Available
11
Ring
048988
$8,01 Unit Price incl. VAT
12
Spacer
223604
$6,60 Unit Price incl. VAT
13
Locating dowel
484993
$0,16 Unit Price incl. VAT
14
Rib
146129
$5,38 Unit Price incl. VAT
15
Shell
174514
$5,38 Unit Price incl. VAT
16
Nut
020107
$2,95 Unit Price incl. VAT
17
Pad
178338
$5,00 Unit Price incl. VAT
18
Flat washer
003057
$2,95 Unit Price incl. VAT
19
Washer
006977
$2,25 Unit Price incl. VAT
20
Nut
020107
$2,95 Unit Price incl. VAT
21
Nut
238969
$3,65 Unit Price incl. VAT
25
Bolt
014565
$5,20 Unit Price incl. VAT
26
Gasket
133157
$7,23 Unit Price incl. VAT
30
Bolt
012485
$3,65 Unit Price incl. VAT
31
Nut
020207
$0,08 Unit Price incl. VAT
32
Screw
023823
$8,01 Unit Price incl. VAT
33
Nut
020105
$0,25 Unit Price incl. VAT
34
Screw
156400
$8,01 Unit Price incl. VAT
35
Washer
006977
$2,25 Unit Price incl. VAT
36
Gasket
078163
$9,50 Unit Price incl. VAT
37
Dust cover
0784825
$19,99 Unit Price incl. VAT
38
screw
121668
$2,95 Unit Price incl. VAT
39
Gasket
139433
$4,82 Unit Price incl. VAT
40
Spring
078521
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
