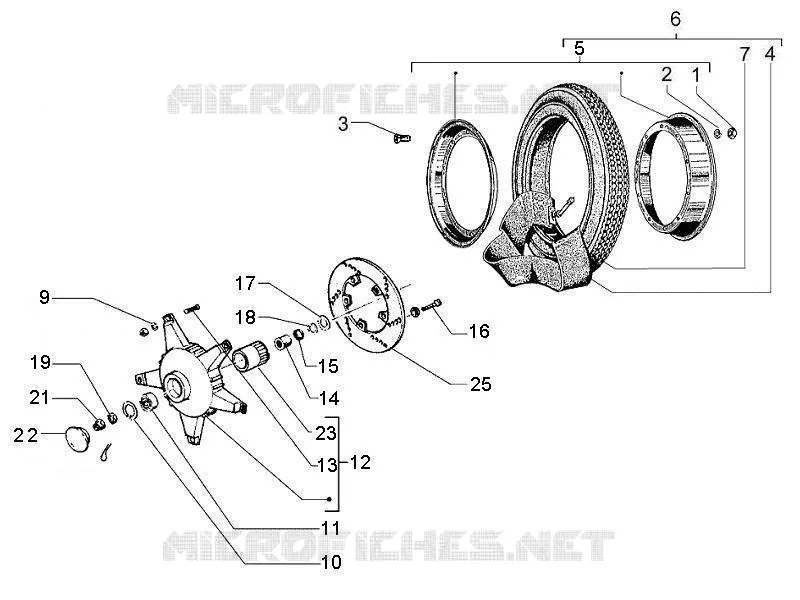

Front wheel
1
2
3
4
5
6
7
10
11
12
13
14
15
16
17
18
19
21
22
23
25
1
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
2
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
3
Stud bolt
229796
$3,65 Unit Price incl. VAT
4
Inner tube 3,50 x 10’’
650028M
$17,69 Unit Price incl. VAT
5
Wheel rim, assy.
0846315
$98,55 Unit Price incl. VAT
6
Wheel
597452
Not Available
7
Tyre 3,5x10" Michelin
597453
Not Available
7
Savatech 3.5x10" tyre
668714
Not Available
10
Snap ring
006635
$0,25 Unit Price incl. VAT
10
Wheel
597452
Not Available
11
Bearing
177610
$8,41 Unit Price incl. VAT
12
Brake drum
563762
$249,60 Unit Price incl. VAT
13
Stud bolt
229796
$3,65 Unit Price incl. VAT
14
Roller cage
177442
$4,04 Unit Price incl. VAT
14
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
15
Gasket ring
177443
$1,77 Unit Price incl. VAT
15
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
16
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
17
Washer
177414
$0,75 Unit Price incl. VAT
18
Circlip
006422
$0,16 Unit Price incl. VAT
19
Nut
021114
$0,51 Unit Price incl. VAT
21
Cap
177609
$2,19 Unit Price incl. VAT
22
Cover
197983
$22,74 Unit Price incl. VAT
23
Chain ring
563873
$83,70 Unit Price incl. VAT
25
Brake disc
56395R
$21,87 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
