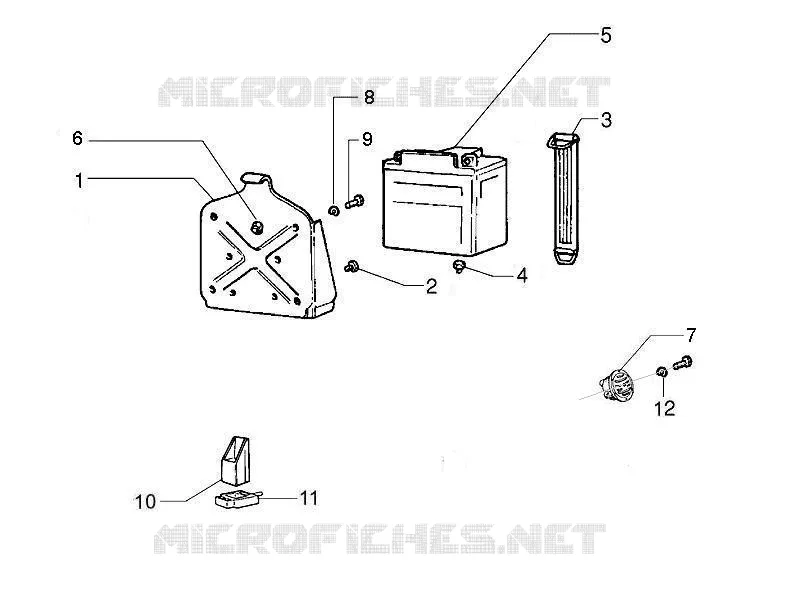

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
1
Box
230750
$18,75 Unit Price incl. VAT
2
Pad
230051
$3,40 Unit Price incl. VAT
3
Belt
218812
$5,78 Unit Price incl. VAT
4
Pad
216895
$3,40 Unit Price incl. VAT
5
Battery 12V-9Ah
584810
$180,83 Unit Price incl. VAT
6
Nut
191962
$3,65 Unit Price incl. VAT
7
Horn 12v cc
58144R
$26,06 Unit Price incl. VAT
8
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
9
Screw m6x12
031086
$0,08 Unit Price incl. VAT
10
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
11
Flexible support
272842
$5,38 Unit Price incl. VAT
12
Washer
013963
$0,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
