by

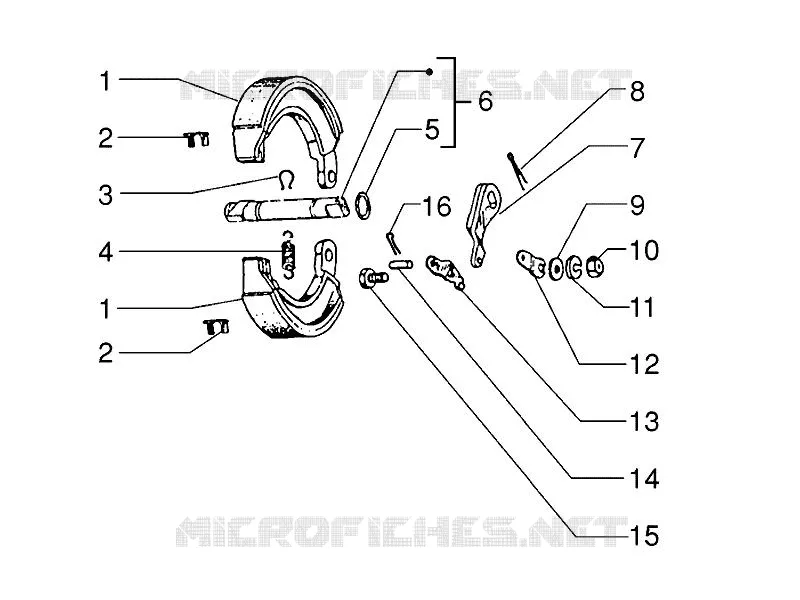

Rear brake - Brake jaw
1
1
2
2
3
4
5
7
8
9
10
11
12
13
14
15
16
1
BRAKE SHOES KIT
647376
Not Available
2
Plate
024410
Not Available
3
Ring
000061
$2,25 Unit Price incl. VAT
4
Spring
078522
$5,00 Unit Price incl. VAT
5
O-ring
006714
$2,95 Unit Price incl. VAT
7
LEVER
100101
Not Available
8
Split pin
003208
$2,95 Unit Price incl. VAT
9
Washer
012539
$2,95 Unit Price incl. VAT
10
Nut
015317
$2,95 Unit Price incl. VAT
11
Washer
013940
$2,95 Unit Price incl. VAT
12
plate
042047
$2,95 Unit Price incl. VAT
13
Plate
094779
$8,01 Unit Price incl. VAT
14
Pin
090306
$6,30 Unit Price incl. VAT
15
Bolt
015510
$6,60 Unit Price incl. VAT
16
Split pin
012761
$1,55 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
