Stater - Electric starter for LXV 4T E3 from 2007

Stater - Electric starter

1

Starter motor

82611R

Not Available

2

Spring washer 12x6,4x0,5

006976

$0,08 Unit Price incl. VAT

4

Screw w/ flange M6x10

969296

$0,16 Unit Price incl. VAT

5

Hex screw M6x22

031091

$0,17 Unit Price incl. VAT

5

Hex screw M6x20

018639

$0,16 Unit Price incl. VAT

6

Starter motor gear

82612R

$31,05 Unit Price incl. VAT

7

kick starter axle

830284

Not Available

8

Starter lever return spring

289495

$15,81 Unit Price incl. VAT

9

Starter lever

827608

$35,10 Unit Price incl. VAT

10

Screw w/ flange M6x30

289731

Not Available

11

Bush

431205

$3,65 Unit Price incl. VAT

16

Pinion

483539

$7,62 Unit Price incl. VAT

17

Washer 16,3x23,8

433987

$2,99 Unit Price incl. VAT

18

Circlip

006416

$0,08 Unit Price incl. VAT

19

Elastic spring

288673

$0,16 Unit Price incl. VAT

20

Pad

830260

$6,30 Unit Price incl. VAT

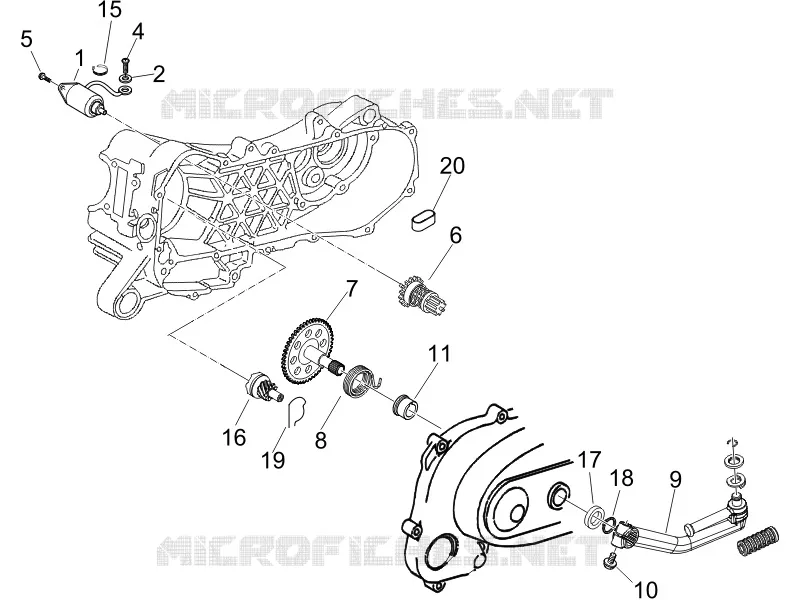

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
