Engine displacement
125
2
Model
LXV
3
Year
2007
4
Trim
LXV 4T E3
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Swinging arm
Handlebars - Master cil.
1
2
3
6
7
8
9
10
11
12
13
15
16
17
18
19
1
Handlebar with U.P.
624741
$287,72 Unit Price incl. VAT
2
(Heng Tong) Right brake lever
648378
$41,85 Unit Price incl. VAT
3
Device holder complete throttle control grip
64987700M4
Not Available
3
Throttle control sleeve with device
64832600EP
$132,30 Unit Price incl. VAT
3
Device holder complete throttle control grip
64987700VG
Not Available
6
Screw with nut
265249
$3,70 Unit Price incl. VAT
7
Left complete lever holder
648067
Not Available
7
Left complete lever holder
648429
Not Available
7
Left complete lever holder
648677
$113,40 Unit Price incl. VAT
8
Spring
267948
$4,89 Unit Price incl. VAT
9
Brake lever
648115
$44,55 Unit Price incl. VAT
10
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
11
Nut M10
015330
$0,25 Unit Price incl. VAT
12
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
13
Hex socket screw
655554
$3,70 Unit Price incl. VAT
13
screw
223605
Not Available
15
Front brake hydraulic pump Heng Tong
CM076309
Not Available
15
Front brake hydraulic pump
CM080802
Not Available
16
Grip
648552
$23,36 Unit Price incl. VAT
17
Grip, r.h.
648553
$23,36 Unit Price incl. VAT
18
Throttle opening transmission
649530
$46,94 Unit Price incl. VAT
19
Throttle closing transmission
649531
$81,36 Unit Price incl. VAT

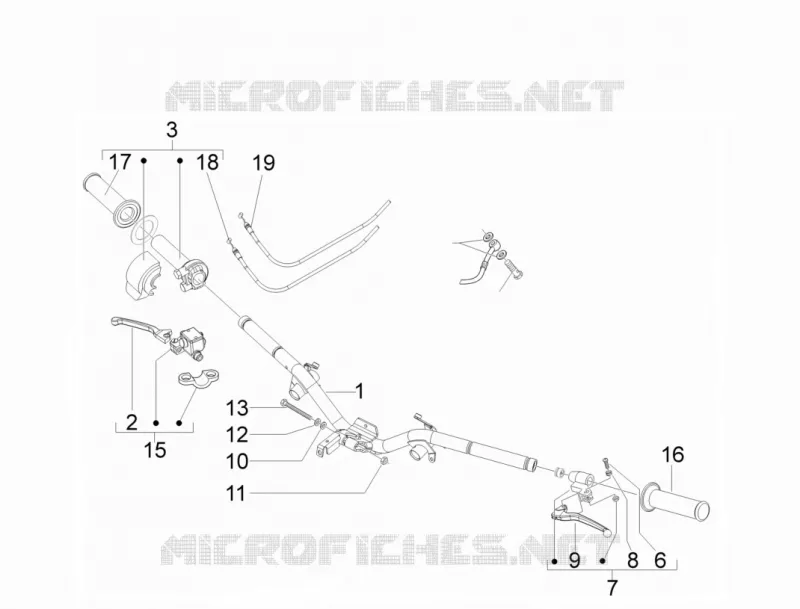

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
