Engine displacement
125
2
Model
LXV
3
Year
2007
4
Trim
LXV 4T E3
5
Parts Catalog
Rear cover - Splash guard
6

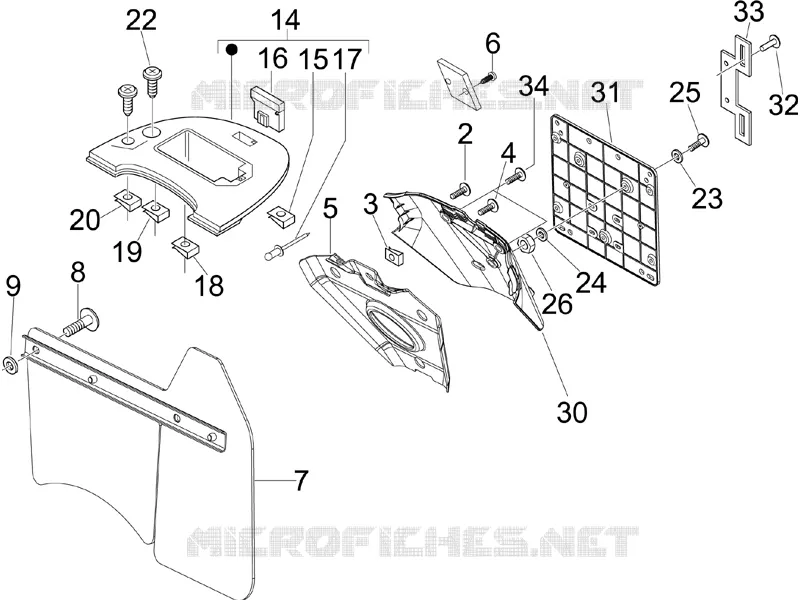

Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Plates - Emblems
Rear cover - Splash guard
2
3
4
5
6
7
8
9
14
15
16
17
18
19
20
22
23
24
25
26
30
31
32
33
34
2
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
2
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
4
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
5
Saddle rear cover
623336
$12,30 Unit Price incl. VAT
6
Plug screw
268596
$0,08 Unit Price incl. VAT
7
Splash guard
623420
$5,38 Unit Price incl. VAT
8
Self tapping screw
297498
$0,08 Unit Price incl. VAT
9
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
14
Battery cover
623020
Not Available
15
Spring plate
CM017410
$0,34 Unit Price incl. VAT
16
Bracket
290405
$4,82 Unit Price incl. VAT
17
Rivet
182302
$0,08 Unit Price incl. VAT
18
Plate
CM017408
$0,25 Unit Price incl. VAT
19
Spring plate
CM017410
$0,34 Unit Price incl. VAT
20
Spring plate M6
254485
$0,34 Unit Price incl. VAT
22
Screw m6x30
271891
$3,65 Unit Price incl. VAT
22
Screw metrica
CM179303
$0,34 Unit Price incl. VAT
23
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
24
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
25
screw M4x14
018591
Not Available
26
Nut M4
020104
$1,26 Unit Price incl. VAT
30
Rear protection
62212340M4
$141,26 Unit Price incl. VAT
30
Rear protection
62212340DE
$141,26 Unit Price incl. VAT
30
Rear protection
62212340VG
Not Available
30
Rear protection
62212340EP
$141,26 Unit Price incl. VAT
30
Rear protection
6221234
Not Available
31
Number plate holder
584884
$2,30 Unit Price incl. VAT
32
Plug screw
268596
$0,08 Unit Price incl. VAT
33
Number-plate extension
584877
$1,43 Unit Price incl. VAT
34
Self tapping screw 3.5x16
294678
$3,65 Unit Price incl. VAT
34
Screw d3,5x13
008372
$2,95 Unit Price incl. VAT
