1
Engine displacement
125
2
Model
LXV
3
Year
2007
4
Trim
LXV 4T E3
5
Parts Catalog

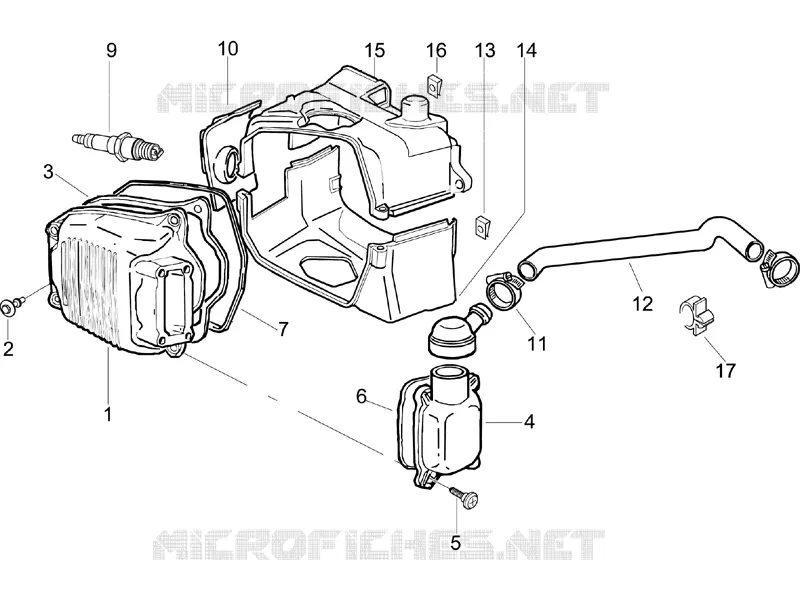

Cylinder head cover
6
Parts Diagram
Parts Catalog
Rocking levers support unit
by
Driving pulley
Cylinder head cover
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
1
Head cover
844349
Not Available
2
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
Packing
829817
$2,43 Unit Price incl. VAT
4
Oil bleed cover
829008
$5,54 Unit Price incl. VAT
5
Self tapping screw M5x20
877136
$0,09 Unit Price incl. VAT
5
screw
828653
Not Available
6
Gasket
487989
Not Available
7
Cylinder head gasket
825364
$1,98 Unit Price incl. VAT
9
Spark plug
829229
Not Available
9
Spark plug CR7EB (NGK)
638852
$13,48 Unit Price incl. VAT
9
Spark plug RG6YC (Champion)
828708
Not Available
10
Spark plug cover
825368
$8,27 Unit Price incl. VAT
11
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
12
Oil breather pipe
842737
$15,95 Unit Price incl. VAT
13
Spring plate
826275
Not Available
14
Exhaust side hood
833821
Not Available
15
Intake side hood
843443
Not Available
16
Spring plate
826275
Not Available
17
Elastic spring
231590
$0,25 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
