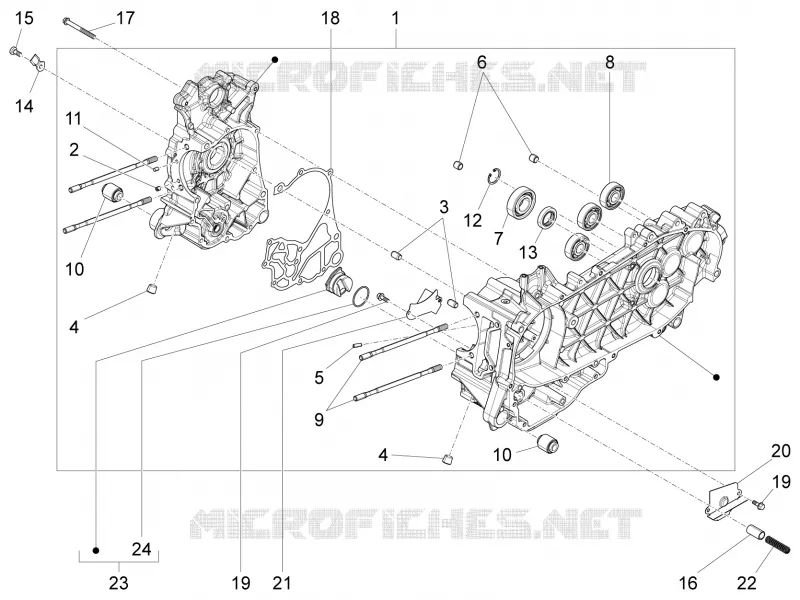

Crankcase for LXV 4T 3V E3 from 2013

Crankcase

1

2nd cat. complete crankcase

CM2658010B

$1 878,18 Unit Price incl. VAT

1

Complete crankcase 1st cat.

CM2658010A

$1 878,18 Unit Price incl. VAT

1

Complete crankcase 1st cat.

CM1682010001

Not Available

1

2nd cat. complete crankcase

CM2847010B

Not Available

1

Complete crankcase 1st cat.

CM2847010A

Not Available

1

2nd cat. complete crankcase

CM1682010002

$2 228,61 Unit Price incl. VAT

2

Nozzle

B018059

$0,59 Unit Price incl. VAT

3

Pin d.9,5 h=15

B015956

$0,75 Unit Price incl. VAT

4

Plug M12x1,5x11

B015433

$2,66 Unit Price incl. VAT

5

Calibrated nozzle

880706

$2,61 Unit Price incl. VAT

6

Locating dowel

B015957

$0,59 Unit Price incl. VAT

7

Radial bearing 20x50x14

83027R

$9,16 Unit Price incl. VAT

8

Radial bearing 15x42x13

83026R

$4,46 Unit Price incl. VAT

9

Stud bolt

879887

Not Available

10

Silent-block

486081

$6,73 Unit Price incl. VAT

11

Locating dowel

B015958

$3,65 Unit Price incl. VAT

12

Circlip 25x26,9x1,2

B015959

$0,34 Unit Price incl. VAT

13

Gasket ring 22x35x7

B014137

$3,65 Unit Price incl. VAT

14

Ring container lamination

876646

$0,76 Unit Price incl. VAT

15

Screw M6x14

B016000

Not Available

16

Oil pressure adjusting valve

B015432

$2,61 Unit Price incl. VAT

17

screw TEF M6x60

1A000322

Not Available

18

Half crankcase gasket

B015429

$0,92 Unit Price incl. VAT

19

Screw w/ flange M5x16

830061

$0,34 Unit Price incl. VAT

20

Oil bulhead

B014134

$4,12 Unit Price incl. VAT

21

Upper oil bulkhead

B014135

$2,02 Unit Price incl. VAT

22

Valve spring

B015431

$0,50 Unit Price incl. VAT

23

Filter door insert

B015430

$3,87 Unit Price incl. VAT

24

Gasket

431065

$0,42 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
