Engine displacement
125
2
Model
LXV
3
Year
2013
4
Trim
LXV 4T 3V E3
5
Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Crankcase
Reduction unit
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Complete reducer cover
B017709
Not Available
2
Radial bearing 25x52x15
83056R
$12,69 Unit Price incl. VAT
3
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
4
Gasket ring 35x47x7
B015623
$5,90 Unit Price incl. VAT
5
Snap ring 52x56,2x2
B016556
$3,65 Unit Price incl. VAT
6
screw M8x35
B016554
Not Available
7
Reduction unit cover gasket
B016456
$3,11 Unit Price incl. VAT
8
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
9
Reduction unit breather pipe assembly
B018670
$10,00 Unit Price incl. VAT
10
Driven pulley shaft z 15
1A000718
$22,45 Unit Price incl. VAT
11
Transmission shaft
4871265
$307,40 Unit Price incl. VAT
12
Wheel axle
B016770
Not Available
13
Hub gear unit
1A000096R
Not Available
14
Belleville spring
B015991
$0,34 Unit Price incl. VAT
15
Screw w/ flange M6x14
833722
Not Available

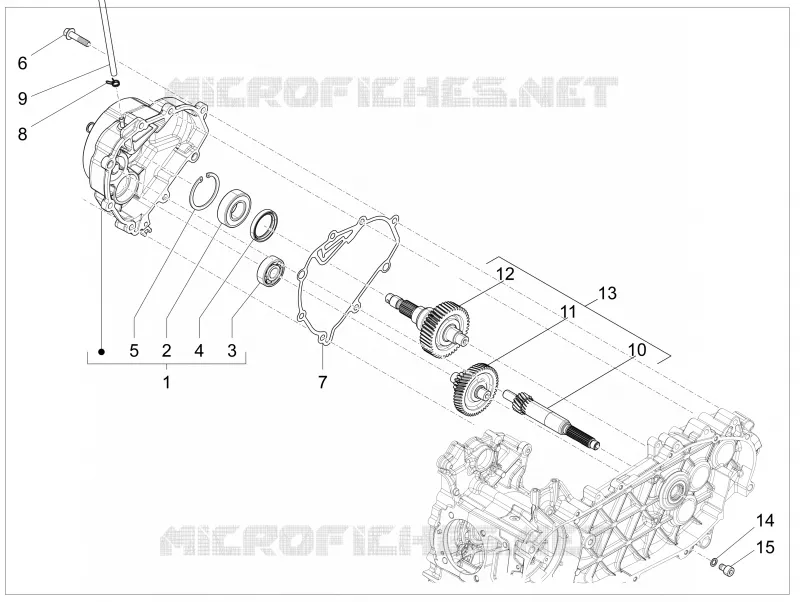

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
