Engine displacement
125
2
Model
LXV
3
Year
2013
4
Trim
LXV 4T 3V E3
5
Parts Catalog
Flywheel magneto
6

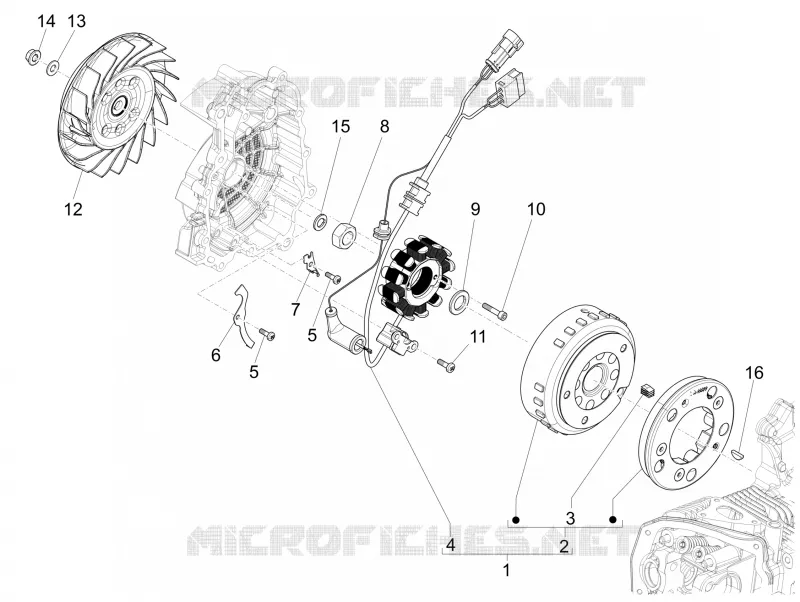

Parts Diagram
Parts Catalog
Head unit - Valve
by
Rear wheel
Flywheel magneto
16
15
14
13
12
11
10
9
8
7
6
5
5
4
3
2
1
1
Complete magneto flywheel
B018107
$267,29 Unit Price incl. VAT
2
Complete freewheel rotor
B018108
$143,10 Unit Price incl. VAT
3
Spring
B019134
$1,87 Unit Price incl. VAT
4
Stator
B016543
$114,75 Unit Price incl. VAT
5
TCIC Screw M5x10
B015998
Not Available
6
Housing sheet
B018105
$1,77 Unit Price incl. VAT
7
Housing sheet
B018106
$1,35 Unit Price incl. VAT
8
Nut M16x1,25
B015996
$1,35 Unit Price incl. VAT
9
Belleville spring
B018464
$2,35 Unit Price incl. VAT
10
Hex socket screw M5x25
B015981
Not Available
11
TCIC Screw M5x16
1A000321
Not Available
12
Fan
1A001021
Not Available
12
Fan
B017647
Not Available
13
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
14
Flanged nut M8x1,25
B015986
Not Available
15
Flat washer
B015807
$0,84 Unit Price incl. VAT
16
Transmission key
B015997
Not Available
