Engine displacement
125
2
Model
LXV
3
Year
2013
4
Trim
LXV 4T 3V E3
5
Parts Catalog
Handlebars - Master cil.
6

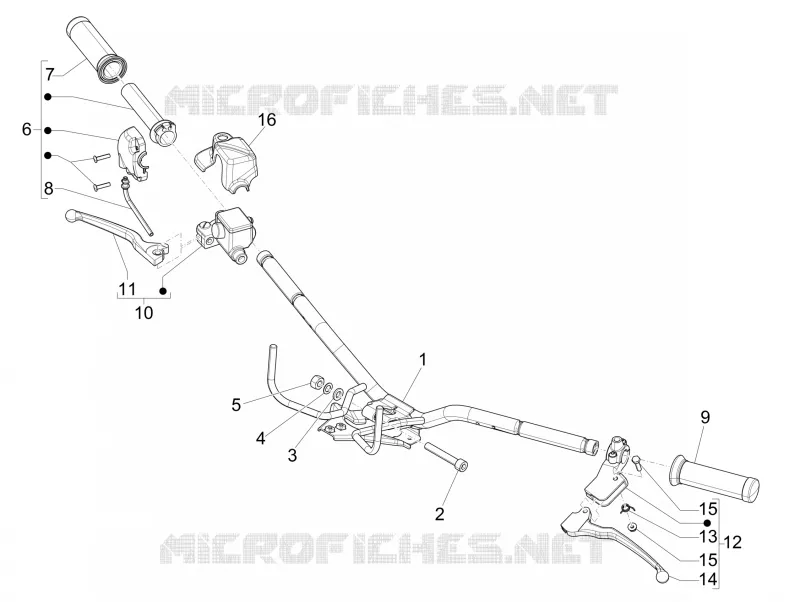

Parts Diagram
Parts Catalog
Swinging arm
by
Brakes pipes - Calipers
Handlebars - Master cil.
16
15
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Handlebar with U.P.
624741
$287,72 Unit Price incl. VAT
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
4
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Throttle control sleeve assembly
1C000226000EM
Not Available
7
Grip, r.h.
648553
$23,36 Unit Price incl. VAT
8
Gas lever transmission
5A000096
Not Available
9
Grip
648552
$23,36 Unit Price incl. VAT
10
Front brake hydraulic pump
CM080804
Not Available
10
Front brake hydraulic pump
CM085405
$120,81 Unit Price incl. VAT
11
(Heng Tong) Right brake lever
648378
$41,85 Unit Price incl. VAT
12
Left complete lever holder
648677
$113,40 Unit Price incl. VAT
13
Spring
267948
$4,89 Unit Price incl. VAT
14
Brake lever
648115
$44,55 Unit Price incl. VAT
15
Screw with nut
265249
$3,70 Unit Price incl. VAT
16
RH pump cover
667198
$56,87 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
