Calipers-brake piping for Gilera Piaggio Vespa Beverly

Calipers-brake piping

1

Rear brake pipe

597802

$18,75 Unit Price incl. VAT

1

Piping

600144

$72,85 Unit Price incl. VAT

2

Rear brake flexible pipe

597801

$21,98 Unit Price incl. VAT

2

Rear brake flexible pipe

600532

Not Available

3

Front brake tube

598017

Not Available

3

Front brake flexible piping

600878

Not Available

4

Nut

440785

$3,65 Unit Price incl. VAT

5

Hose clamp

576698

Not Available

5

Hose clamp

577674

$4,82 Unit Price incl. VAT

6

Spring washer

709047

$0,08 Unit Price incl. VAT

7

Hose clamp

597418

$3,65 Unit Price incl. VAT

8

Screw w/ flange M6x30

289731

Not Available

9

Bracket

597804

Not Available

10

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

11

Plate

136916

$5,38 Unit Price incl. VAT

12

Hose clamp

217280

Not Available

13

Oil pipe screw M10x18

265451

$9,25 Unit Price incl. VAT

14

Gasket

127927

$0,25 Unit Price incl. VAT

15

Brake caliper Heng Tong

CM068301

Not Available

15

Brake caliper

56056R

Not Available

16

Brake pads kit

494628

Not Available

16

Brake pads kit

497116

Not Available

17

Piping

600145

Not Available

17

Piping

597917

Not Available

18

screw

598919

$2,27 Unit Price incl. VAT

18

Screw m8x22

564837

Not Available

19

Bolt

031115

$2,95 Unit Price incl. VAT

19

Hex socket screw

598920

$3,65 Unit Price incl. VAT

20

Spring washer

709047

$0,08 Unit Price incl. VAT

21

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

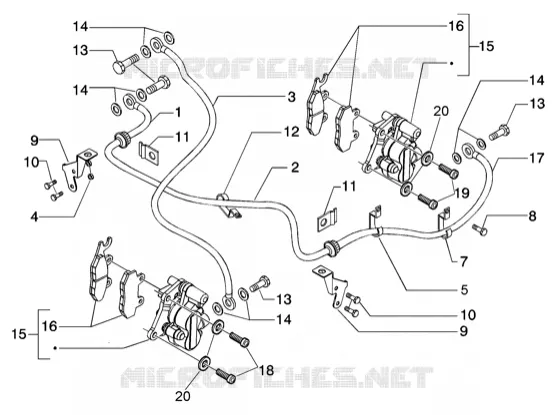

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
