Forck-steearing bearings for Gilera Piaggio Vespa Beverly

Forck-steearing bearings

1

LH sleeve

497185

$166,91 Unit Price incl. VAT

2

Left fork leg

497184

$166,91 Unit Price incl. VAT

3

screw (Kayaba)

599262

$3,65 Unit Price incl. VAT

3

screw

497007

Not Available

4

Cylinder

497186

$12,62 Unit Price incl. VAT

5

Sleeve

497187

$57,98 Unit Price incl. VAT

6

Oil seal

497010

Not Available

7

Oil plug

497011

$4,82 Unit Price incl. VAT

8

screw

497012

Not Available

8

screw (Kayaba)

599269

$3,65 Unit Price incl. VAT

9

Washer (Kayaba)

599270

$3,65 Unit Price incl. VAT

9

Gasket

497013

Not Available

10

Gasket ring

497132

$3,65 Unit Price incl. VAT

11

Dust cover

497015

$11,69 Unit Price incl. VAT

12

Spring

497190

$5,53 Unit Price incl. VAT

13

O-ring

497017

$4,82 Unit Price incl. VAT

14

Plug

497018

$9,50 Unit Price incl. VAT

15

Lower plate

497191

Not Available

16

screw

497020

Not Available

17

Steering bearing assy.

597428

Not Available

18

Cup

497189

$4,82 Unit Price incl. VAT

19

Spring

497188

$4,82 Unit Price incl. VAT

20

Front fork

597906

Not Available

21

Spring plate

184142

Not Available

22

Cover

5982030043

Not Available

23

SCREW

018586

Not Available

23

Screw M4,2x13

259349

$0,17 Unit Price incl. VAT

24

Collar

583787

$5,38 Unit Price incl. VAT

25

LH sleeve

597544

$26,74 Unit Price incl. VAT

25

RH sleeve

597543

$26,74 Unit Price incl. VAT

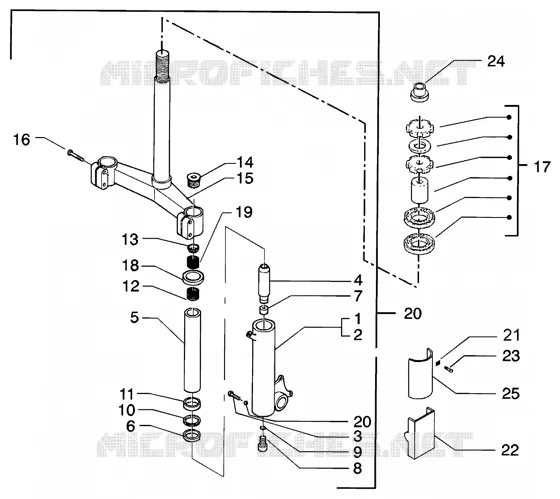

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
