Pump group-oil pan for Gilera Piaggio Vespa Beverly

Pump group-oil pan

1

Chain tensioner rod spacer

485868

$0,29 Unit Price incl. VAT

2

Chain tensioner rod

828303

Not Available

3

Chain tensioner sliding block

828308

$1,34 Unit Price incl. VAT

4

Screw w/ flange M6x25

414837

Not Available

5

Oil pump assembly

844352

Not Available

5

Oil pump

487343

Not Available

6

Screw w/ flange M6x25

414837

Not Available

7

Screw w/ flange

433477

$0,19 Unit Price incl. VAT

8

Belleville spring Ã˜6,4xÃ˜20x2

436695

$0,59 Unit Price incl. VAT

9

Screw w/ flange M6x14

833722

Not Available

9

Screw w/ flange

436788

Not Available

10

Lower oil bulkhead

483767

$0,38 Unit Price incl. VAT

12

Motor oil cup

843761

$13,95 Unit Price incl. VAT

12

Pan oil

829523

$16,58 Unit Price incl. VAT

13

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

14

Oil pump gear

287913

$6,47 Unit Price incl. VAT

15

Oil pump chain

82649R

$13,37 Unit Price incl. VAT

16

Oil pump control pinion

82783R

$7,99 Unit Price incl. VAT

16

Oil pump control pinion

483784

Not Available

17

Carter-oil pump gasket

486082

$0,29 Unit Price incl. VAT

18

Camshaft chain

82644R

Not Available

19

Timing chain pinion

82782R

$7,06 Unit Price incl. VAT

19

Pinion

841193

Not Available

19

Timing pinion

825595

$22,39 Unit Price incl. VAT

20

Oil seal washer

483918

$0,53 Unit Price incl. VAT

21

Gasket ring

825620

$8,21 Unit Price incl. VAT

22

Gasket ring

82538R

$8,01 Unit Price incl. VAT

23

Oil pump chain drift

434345

$2,77 Unit Price incl. VAT

24

Cover

828875

$11,51 Unit Price incl. VAT

25

Self-tapping screw M5x12

015585

$0,08 Unit Price incl. VAT

26

Oil filler plug

846819

Not Available

26

Oil plug assembly

843364

$1,39 Unit Price incl. VAT

26

Oil plug assembly

827761

Not Available

28

O-ring

479986

Not Available

29

Plain washer

487937

$0,09 Unit Price incl. VAT

30

Upper oil bulkhead

485047

$0,48 Unit Price incl. VAT

31

Sump gasket

830128

$2,77 Unit Price incl. VAT

32

Hose clamp

564629

$2,50 Unit Price incl. VAT

33

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

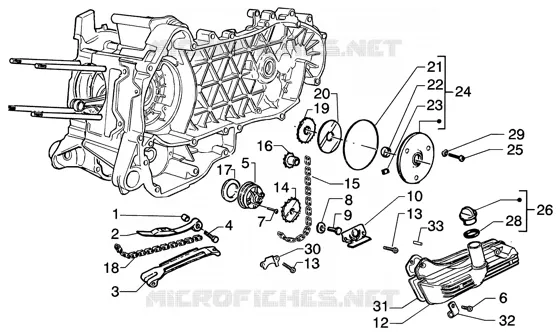

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
