Parts Catalog

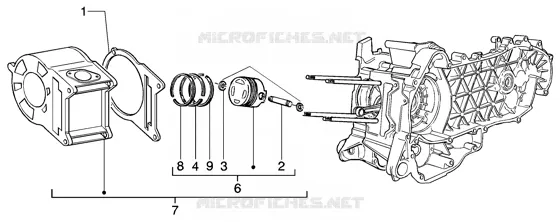

Cylinder-piston-wrist pin, assy
6
Parts Diagram
Parts Catalog
Battery-voltage regulator
by
Front wheel
Cylinder-piston-wrist pin, assy
1
2
3
4
6
7
8
9
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Piston pin
482335
$4,92 Unit Price incl. VAT
3
Snap ring
963486
$0,05 Unit Price incl. VAT
4
Oil scraper ring d.57x1
434415
Not Available
4
Scraper ring
487999
Not Available
4
Scraper ring
487995
Not Available
4
Scraper ring
488003
$7,61 Unit Price incl. VAT
6
Piston-wrist pin assy.
8284665002
Not Available
6
Piston-wrist pin assy.
8284665004
Not Available
6
Piston-wrist pin assy.
828464
Not Available
6
Piston-wrist pin assy.
8284665003
Not Available
6
Piston-wrist pin assy.
828465
Not Available
6
Piston-wrist pin assy.
8284665001
Not Available
6
Piston-wrist pin assy.
828463
Not Available
7
Cylinder, assy.
830051
Not Available
8
Gasket ring
487994
Not Available
8
Gasket ring
487998
Not Available
8
Gasket ring
488002
Not Available
8
Compression ring d.57x1
485619
Not Available
9
Oil scraper ring d.57x2,5
485934
Not Available
9
Oil scraper ring
488004
Not Available
9
Oil scraper ring
825029
$14,34 Unit Price incl. VAT
9
Oil scraper ring
487996
$14,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
