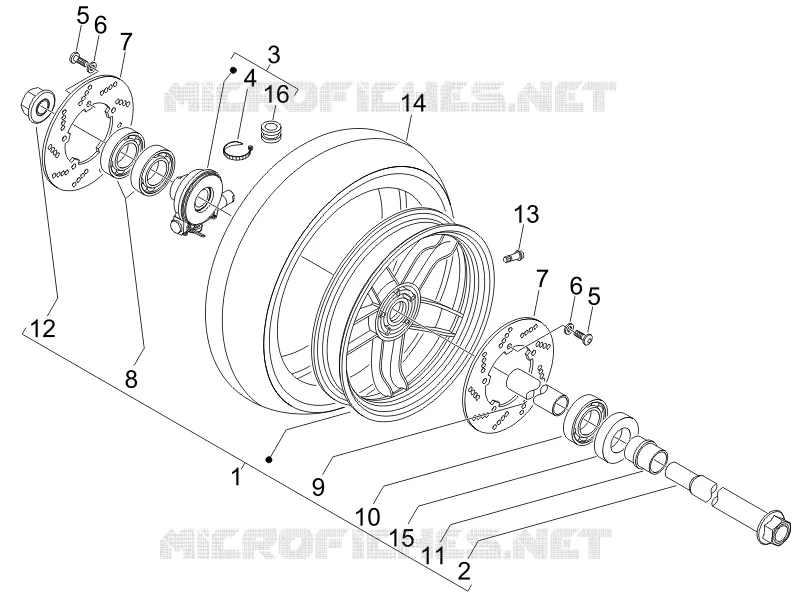

Front wheel for Nexus E3 from 2009

Front wheel

1

Front wheel

647776

Not Available

2

Front wheel axle

564446

$24,90 Unit Price incl. VAT

3

Speedometer encoder

56436R

$56,87 Unit Price incl. VAT

4

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

5

Hex socket screw M6x20

271147

$0,17 Unit Price incl. VAT

6

Washer 6,4x10x0,7

274706

$0,24 Unit Price incl. VAT

7

Brake disc

56393R

$52,65 Unit Price incl. VAT

8

Bearing

327187

$11,03 Unit Price incl. VAT

9

Spacer

564447

$9,41 Unit Price incl. VAT

10

Bearing

564491

$9,18 Unit Price incl. VAT

11

Short spacer

564448

$8,01 Unit Price incl. VAT

12

Nut M12

271740

$0,67 Unit Price incl. VAT

13

Tubeless valve

597679

$3,03 Unit Price incl. VAT

14

Front/rear tyre Bridgeston 120/70-15

975563

Not Available

14

Front/rear tyre MICHELIN 120/70-15

975609

Not Available

14

Front/rear tyre PIRELLI 120/70-15

646864

Not Available

15

RH spacer

564489

$3,65 Unit Price incl. VAT

16

Fairlead

563989

$0,32 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
