Parts Catalog
Remote control switches - Battery - Horn
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Central cover - Footrests
Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Horn
CM071801
Not Available
2
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
3
Battery YTX14AHL-BS 166x90x134
640201
$377,48 Unit Price incl. VAT
4
Spring
140435
$1,01 Unit Price incl. VAT
5
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
6
Belt
583921
$9,50 Unit Price incl. VAT
7
screw
581596
$0,07 Unit Price incl. VAT
8
Square
584305
$4,82 Unit Price incl. VAT
9
Screw m6x12
031086
$0,08 Unit Price incl. VAT
10
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
11
Rem. control switch 12V-30A
58099R
$36,86 Unit Price incl. VAT
12
Starter relay
582690
$27,87 Unit Price incl. VAT
13
Fuse 30A
581440
Not Available
14
Flexible support
582906
Not Available
15
STIRRUP
584792
Not Available
16
Screw M6x16
272836
$3,70 Unit Price incl. VAT
17
Washer
078307
$0,17 Unit Price incl. VAT
18
Bracket
975749
$4,87 Unit Price incl. VAT
19
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
20
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
21
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
22
Stop buffer
575937
Not Available

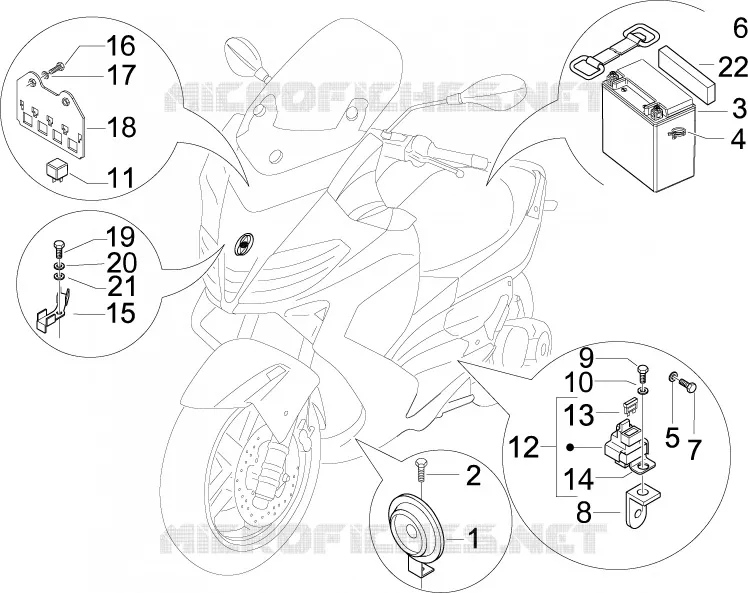

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
