Engine displacement
500
2
Model
NEXUS
3
Year
2009
4
Trim
Nexus E3
5
Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Silencer
by
Handlebars - Master cil.
Rear suspension - Shock absorber/s
1
2
4
5
6
9
10
11
12
13
14
15
16
17
18
19
21
22
23
24
25
26
27
28
29
30
30
31
32
33
37
1
Rear shock absorber
56159R
$229,34 Unit Price incl. VAT
2
Swinging unit coupling complete strut
647823
Not Available
4
Engine union
842601
Not Available
5
Suspension strut ring nut
842456
Not Available
6
O-ring
942150
Not Available
9
Suspension connection reinforcement pipe
8425335
Not Available
10
Hex socket screw
828340
Not Available
11
Hex socket screw
845590
$0,92 Unit Price incl. VAT
12
Self locking nut
597565
$0,50 Unit Price incl. VAT
13
screw TBEI M6 L60
975669
$3,65 Unit Price incl. VAT
14
screw
975830
Not Available
15
screw
975119
Not Available
16
Spacer
975118
$2,91 Unit Price incl. VAT
17
Nut
564878
$2,99 Unit Price incl. VAT
18
screw
647317
$1,71 Unit Price incl. VAT
19
Spacer
975123
$3,80 Unit Price incl. VAT
21
Nut
975695
$0,44 Unit Price incl. VAT
22
screw TEF M10X45
967384
$3,65 Unit Price incl. VAT
23
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
24
Nut
564878
$2,99 Unit Price incl. VAT
25
Spacer
975118
$2,91 Unit Price incl. VAT
26
screw
621933
Not Available
27
Nut
621934
Not Available
28
Washer
841140
$3,65 Unit Price incl. VAT
29
Spacer
842590
Not Available
30
Dust cover
975800
Not Available
31
screw
015946
$2,95 Unit Price incl. VAT
32
screw
263381
$4,62 Unit Price incl. VAT
33
Hose clamp
269273
$3,65 Unit Price incl. VAT
37
Rear suspension rocker
647828
Not Available

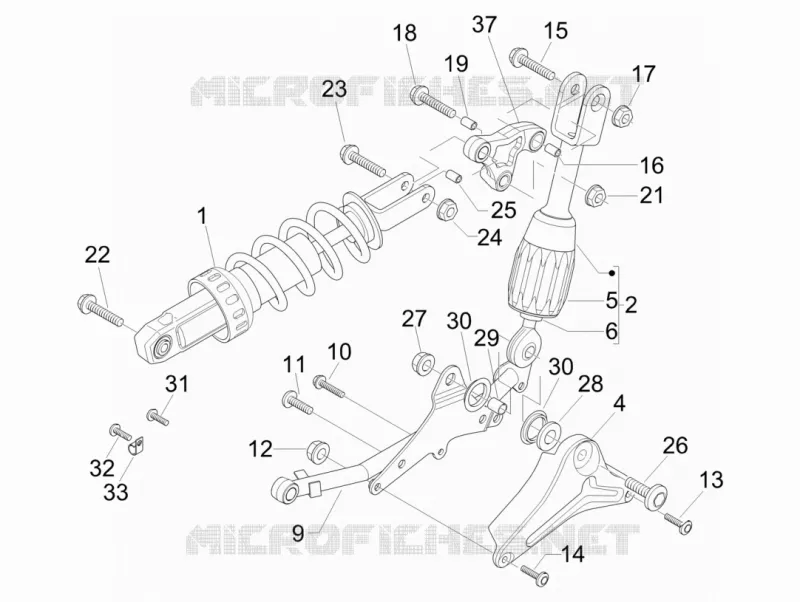

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
