Parts Catalog
Fork/steering tube - Steering bearing unit
6

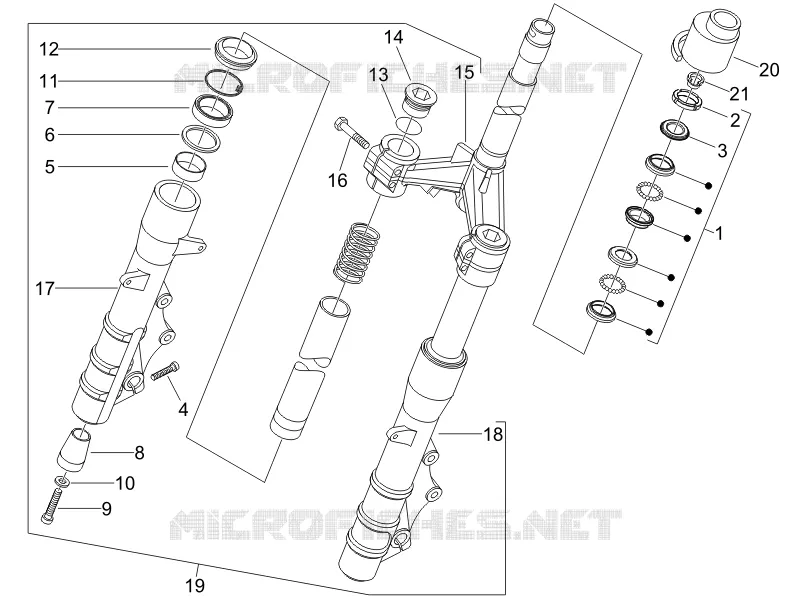

Parts Diagram
Parts Catalog
Throttle body - Injector - Union pipe
by
Brakes pipes - Calipers
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Steering bear. assy.
5982615
$114,75 Unit Price incl. VAT
2
Steering tube ring nut
011109
Not Available
3
Steering security plate
582787
$3,65 Unit Price incl. VAT
4
screw (Kayaba)
599262
$3,65 Unit Price incl. VAT
5
Upper bush (Kayaba)
599265
$6,60 Unit Price incl. VAT
6
Washer (Kayaba)
599266
$4,82 Unit Price incl. VAT
7
Oil seal (Kayaba)
599267
$25,95 Unit Price incl. VAT
8
Bush (Kayaba)
599268
$9,69 Unit Price incl. VAT
9
screw (Kayaba)
599269
$3,65 Unit Price incl. VAT
10
Washer (Kayaba)
599270
$3,65 Unit Price incl. VAT
11
Circlip (Kayaba)
599271
Not Available
12
Dust cover (Kayaba)
599272
$33,03 Unit Price incl. VAT
13
O-ring (Kayaba)
599274
Not Available
14
Fork tube cap (Kayaba)
599275
$10,35 Unit Price incl. VAT
15
Lower plate complete with headstock (Kayaba)
975706
Not Available
16
screw M10x44 (KAYABA)
975707
$1,37 Unit Price incl. VAT
17
RH sleeve cpl. (Kayaba)
975708
Not Available
18
LH sleeve cpl. (Kayaba)
975709
$177,63 Unit Price incl. VAT
19
Front fork assembly
56141R
Not Available
20
Collar
975683
$2,13 Unit Price incl. VAT
21
Grommet
975715
$1,64 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
