1
Engine displacement
500
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus E3
5
Parts Catalog

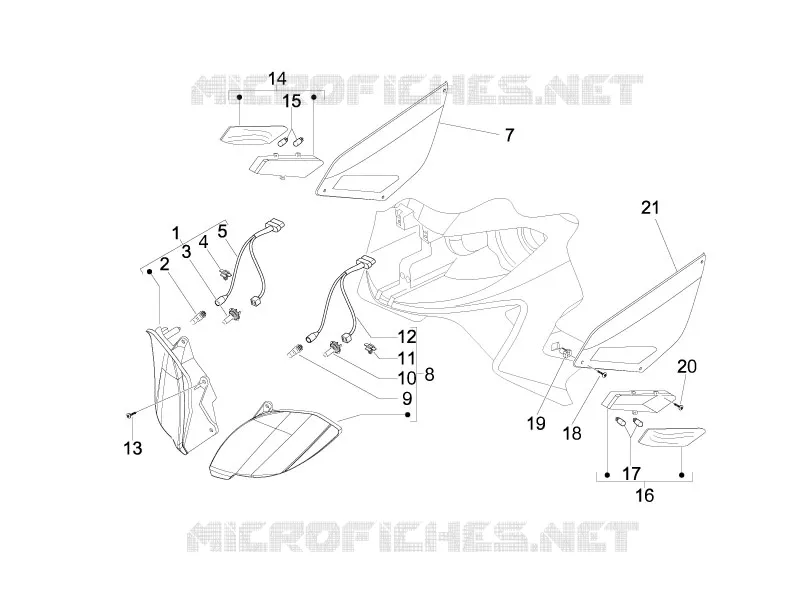

Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Rear wheel
by
Plates - Emblems
Front headlamps - Turn signal lamps
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Headlamp
638696
Not Available
2
Lamp 12V-5W
292022
Not Available
3
Lamp H7 12V-55W
294353
$17,40 Unit Price incl. VAT
4
Maintenance
584002
$1,77 Unit Price incl. VAT
5
Right cable harness
638698
$11,72 Unit Price incl. VAT
7
RH support
624377000G
$6,41 Unit Price incl. VAT
8
Headlamp
638697
Not Available
9
Lamp 12V-5W
292022
Not Available
10
Lamp H7 12V-55W
294353
$17,40 Unit Price incl. VAT
11
Maintenance
584002
$1,77 Unit Price incl. VAT
12
Left cable harness
638699
Not Available
13
Screw M6x16
272836
$3,70 Unit Price incl. VAT
14
RH front turn indicator
639477
$206,10 Unit Price incl. VAT
15
Lamp
581904
$6,35 Unit Price incl. VAT
16
LH front turn indicator
639478
$206,10 Unit Price incl. VAT
17
Lamp
581904
$6,35 Unit Price incl. VAT
18
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
19
Expansion plug
199190
$2,95 Unit Price incl. VAT
20
Self tapping screw
297498
$0,08 Unit Price incl. VAT
21
LH support
624376000G
$4,49 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
