1
Engine displacement
500
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus E3
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Driving mirror/s
by
Transmissions
Cooling system
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
2
Fuel tank gasket
620737
$4,82 Unit Price incl. VAT
3
Tank
975031
Not Available
4
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
5
Screw M6x16
272836
$3,70 Unit Price incl. VAT
6
Bracket
975592
$2,58 Unit Price incl. VAT
7
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
8
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
9
Tank-cooler feed pipe
CM007007
$20,60 Unit Price incl. VAT
9
Tank-cooler feed pipe
620036
Not Available
10
Upper rubber
351782
$0,34 Unit Price incl. VAT
11
Cooler-tank return pipe
975696
$3,23 Unit Price incl. VAT
12
Spacer
273288
$1,01 Unit Price incl. VAT
13
Pipes/cables retainer spring L=16
CM006907
$1,51 Unit Price incl. VAT
13
Washer d6,2x20x1
013092
$0,17 Unit Price incl. VAT
14
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
15
Radiator-pump pipe fitting link
975697
$36,58 Unit Price incl. VAT
16
Lower rubber
258904
$0,25 Unit Price incl. VAT
17
Thermostat-cooler pipe fitting link
975698
Not Available
18
Water cooler
57311R
$93,31 Unit Price incl. VAT
19
Electric fan
58170R
Not Available
19
Fan engine
621030
Not Available
20
Spring plate M6
254485
$0,34 Unit Price incl. VAT
21
Lower rubber
258904
$0,25 Unit Price incl. VAT
22
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
23
Hose clamp
CM001916
$3,65 Unit Price incl. VAT
24
Hose clamp
CM001921
$3,65 Unit Price incl. VAT
25
Guard
580160
Not Available
26
Copper gasket
168077
$3,65 Unit Price incl. VAT
27
Cover
621365
$4,82 Unit Price incl. VAT

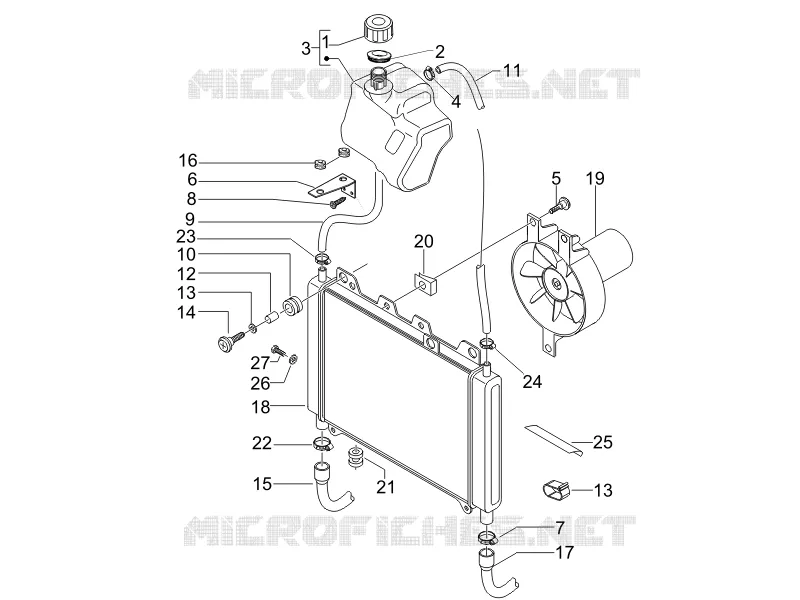

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
