1
Engine displacement
500
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus E3
5
Parts Catalog
Head unit - Valve
6

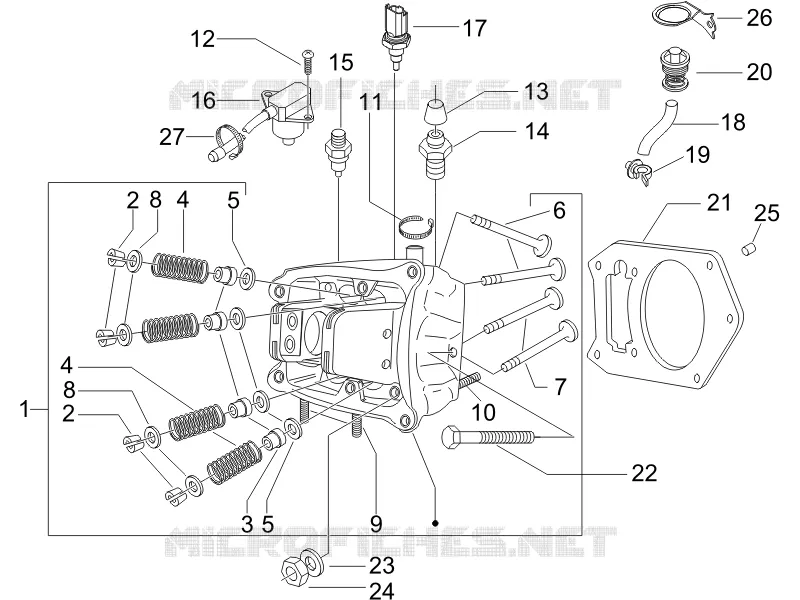

Parts Diagram
Parts Catalog
Supply system
by
Driving mirror/s
Head unit - Valve
1
2
2
3
4
4
5
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Cylinder head assy.
847793
Not Available
2
Valve half-cone
285846
$2,94 Unit Price incl. VAT
3
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
4
Valve spring
826103
$2,67 Unit Price incl. VAT
5
Lower cup
826256
$0,86 Unit Price incl. VAT
6
Exhaust valve
828321
$20,54 Unit Price incl. VAT
7
Intake valve
828322
$29,24 Unit Price incl. VAT
8
Upper cup
828396
$118,11 Unit Price incl. VAT
9
Exhaust pipe stud bolt M8x3x46
827018
Not Available
10
Stud bolt M6
827953
$3,21 Unit Price incl. VAT
11
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
12
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
13
Bleed valve cap
063435
$0,34 Unit Price incl. VAT
14
Bleed screw
430045
$2,40 Unit Price incl. VAT
15
Engine speed sensor
638991
Not Available
16
Encoder sensor
832029
Not Available
17
Temp. Sensor
828646
$63,50 Unit Price incl. VAT
18
Thermostat-head pipe
840826
$10,00 Unit Price incl. VAT
19
Elastic spring
843603
$5,38 Unit Price incl. VAT
20
Thermostat
848140
$79,10 Unit Price incl. VAT
21
Cylinder head gasket
830008
$21,98 Unit Price incl. VAT
22
screw M6x90
830278
$2,95 Unit Price incl. VAT
23
High hexagonal nut
832783
$2,83 Unit Price incl. VAT
24
Flat washer
178790
$0,51 Unit Price incl. VAT
25
Pin 11,8X10
825597
$0,94 Unit Price incl. VAT
26
Bracket
840062
$2,83 Unit Price incl. VAT
27
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
28
Plug M6x10
842360
$0,75 Unit Price incl. VAT
