1
Engine displacement
500
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus E3
5
Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Engine, assembly
by
Handlebars - Master cil.

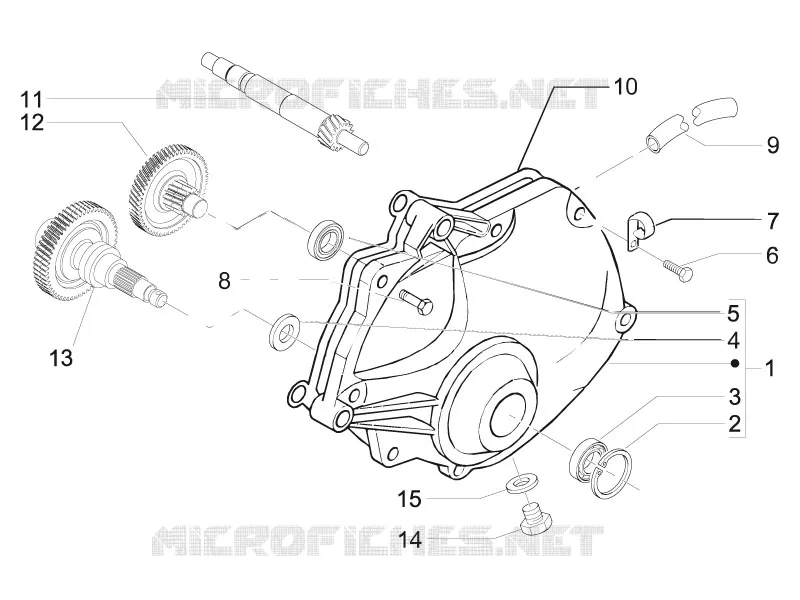

Reduction unit
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
1
Complete reducer cover
8320525
$253,61 Unit Price incl. VAT
2
Circlip
829206
$0,67 Unit Price incl. VAT
3
Radial bearing 30x55x13
82659R
Not Available
4
Oil seal 38x50x7
829201
Not Available
4
Oil seal 38x50x7
873351
$4,80 Unit Price incl. VAT
5
Bearing D20x52x15
82660R
$21,87 Unit Price incl. VAT
6
screw M8x50
830198
Not Available
7
Hose clamp
487948
$0,43 Unit Price incl. VAT
8
Screw w/ flange M8x35
828911
Not Available
9
Breather
840733
$8,65 Unit Price incl. VAT
10
Gasket
847963
$13,47 Unit Price incl. VAT
11
Driven pulley shaft
8342335
Not Available
12
Transmission shaft
8324875
$430,91 Unit Price incl. VAT
13
Wheel axle
8324915
Not Available
14
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
15
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
