1
Engine displacement
250
2
Model
NEXUS
3
Year
2007
4
Trim
Nexus -SP- E3
5
Parts Catalog

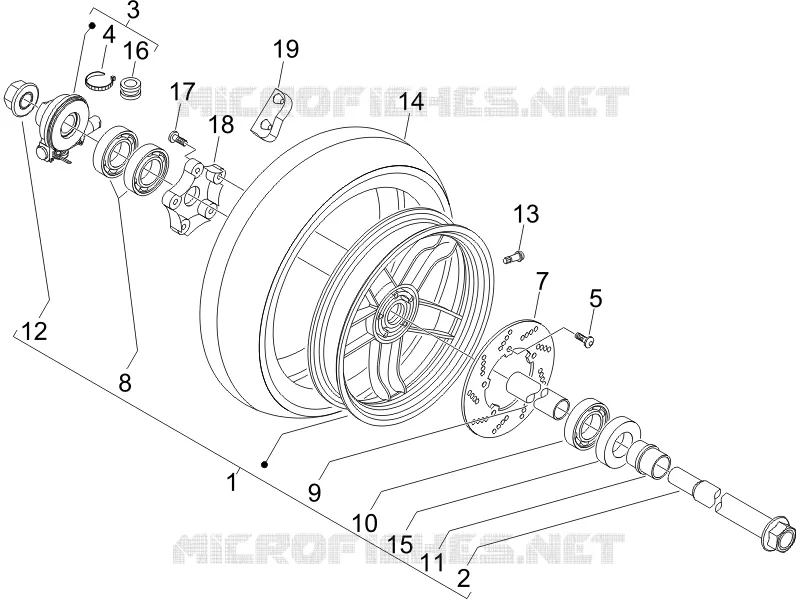

Front wheel
6
Parts Diagram
Parts Catalog
Crankcase
by
Remote control switches - Battery - Horn
Front wheel
8
19
18
17
16
15
14
13
12
11
10
9
7
5
4
3
2
1
1
Ruota anteriore completa di cuscinetto
647866T
Not Available
2
Front wheel axle
564446
$24,90 Unit Price incl. VAT
3
SPEEDO SENDER
58118R
Not Available
4
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
5
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
7
Brake disc
56393R
$52,65 Unit Price incl. VAT
8
Bearing
327187
$11,03 Unit Price incl. VAT
9
Spacer
564447
$9,41 Unit Price incl. VAT
10
Bearing
564491
$9,18 Unit Price incl. VAT
11
Short spacer
564448
$8,01 Unit Price incl. VAT
12
Nut M12
271740
$0,67 Unit Price incl. VAT
13
Tubeless valve
597679
$3,03 Unit Price incl. VAT
14
Tyre 120/70-14" Pirelli
564980
Not Available
14
Tyre (Michelin) 120/70-14"
601847
Not Available
15
RH spacer
564489
$3,65 Unit Price incl. VAT
16
Fairlead
560136
$3,65 Unit Price incl. VAT
17
screw
582469
$3,65 Unit Price incl. VAT
18
Brake disc
599315
Not Available
19
Front wheel hub cover
647885
$2,79 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
