1
Engine displacement
250
2
Model
NEXUS
3
Year
2007
4
Trim
Nexus -SP- E3
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by

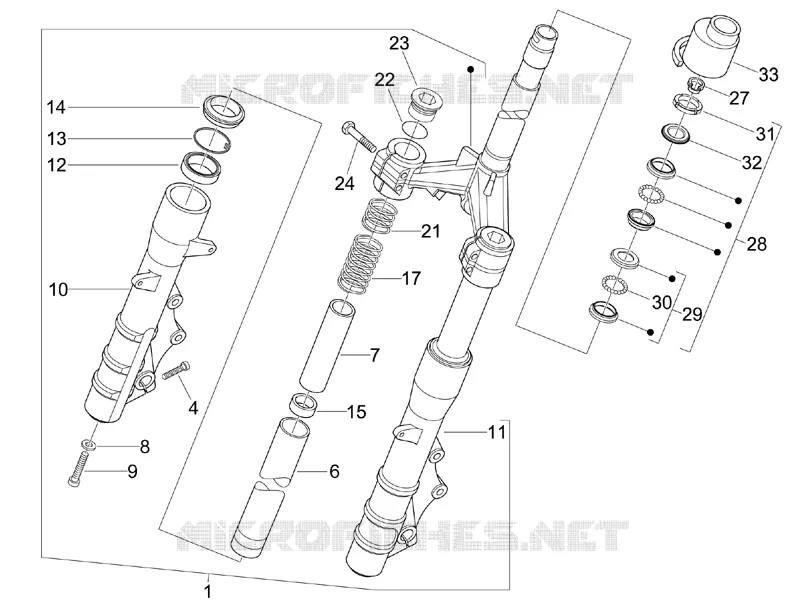

Fork/steering tube - Steering bearing unit
33
4
6
7
8
17
12
11
10
9
1
32
31
30
29
28
27
24
23
22
21
15
14
13
1
Front fork assembly
647438
Not Available
4
screw (Kayaba)
599262
$3,65 Unit Price incl. VAT
6
Fork stanchion KAIABA
601307
Not Available
7
Fork cylinder
601308
$9,56 Unit Price incl. VAT
8
Washer (Kayaba)
599270
$3,65 Unit Price incl. VAT
9
screw (Kayaba)
599269
$3,65 Unit Price incl. VAT
10
RH sleeve
497006
Not Available
11
LH sleeve
497005
$94,98 Unit Price incl. VAT
12
Fork oil seal
601310
$25,95 Unit Price incl. VAT
13
Gasket ring
497132
$3,65 Unit Price incl. VAT
14
Dust cover
497131
Not Available
15
Oil plug
497011
$4,82 Unit Price incl. VAT
17
Fork spring
601309
Not Available
21
Spring
599421
$0,83 Unit Price incl. VAT
22
O-ring
497017
$4,82 Unit Price incl. VAT
23
Plug
601312
$7,11 Unit Price incl. VAT
24
screw
600270
Not Available
26
Cover
599931
$5,21 Unit Price incl. VAT
27
Grommet
975715
$1,64 Unit Price incl. VAT
28
Steering bearing assy.
600921
Not Available
29
Lower steering bearing
CM061304
Not Available
30
Missing description
000000
Not Available
31
Steering tube ring nut
011109
Not Available
31
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
32
Steering security plate
582787
$3,65 Unit Price incl. VAT
33
Collar
975683
$2,13 Unit Price incl. VAT
34
Upper thrust ring
600750
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
