1
Engine displacement
250
2
Model
NEXUS
3
Year
2007
4
Trim
Nexus -SP- E3
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Front shield
by
Rear suspension - Shock absorber/s

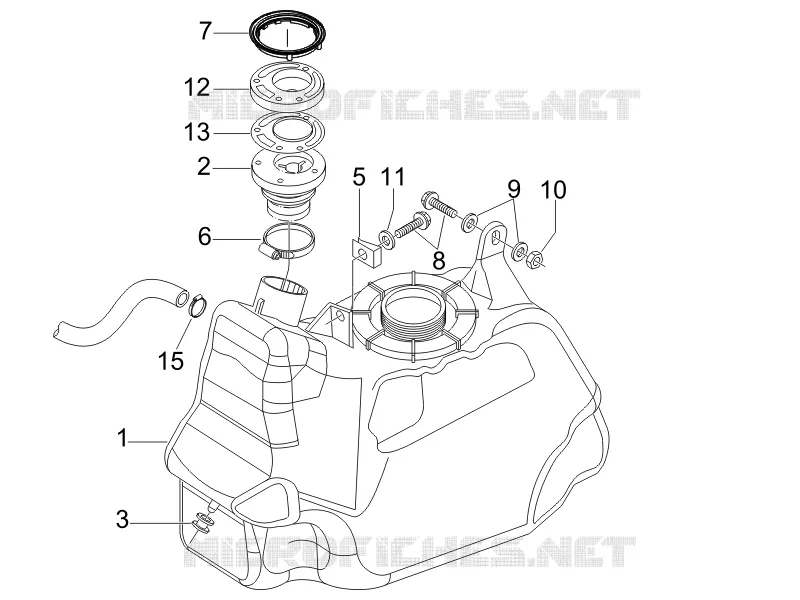

Fuel tank
8
9
15
13
12
11
10
7
6
5
3
2
1
1
Fuel tank
975153
$81,74 Unit Price incl. VAT
2
Filler cap
975605
$7,76 Unit Price incl. VAT
3
Elastic drift
463195
Not Available
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Hose clamp
CM001910
$0,99 Unit Price incl. VAT
7
Gasket
975752
Not Available
8
screw
975805
$3,65 Unit Price incl. VAT
9
Flat washer 6,5x21
268304
$0,42 Unit Price incl. VAT
9
screw
975806
$0,27 Unit Price incl. VAT
9
Flat washer
270216
$2,99 Unit Price incl. VAT
10
Self locking nut M6
195482
$0,19 Unit Price incl. VAT
11
Washer
078307
$0,17 Unit Price incl. VAT
12
Filler cap
975151
Not Available
13
Gasket
975608
Not Available
14
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
14
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
14
Screw w/ flange
847645
$3,65 Unit Price incl. VAT
15
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
