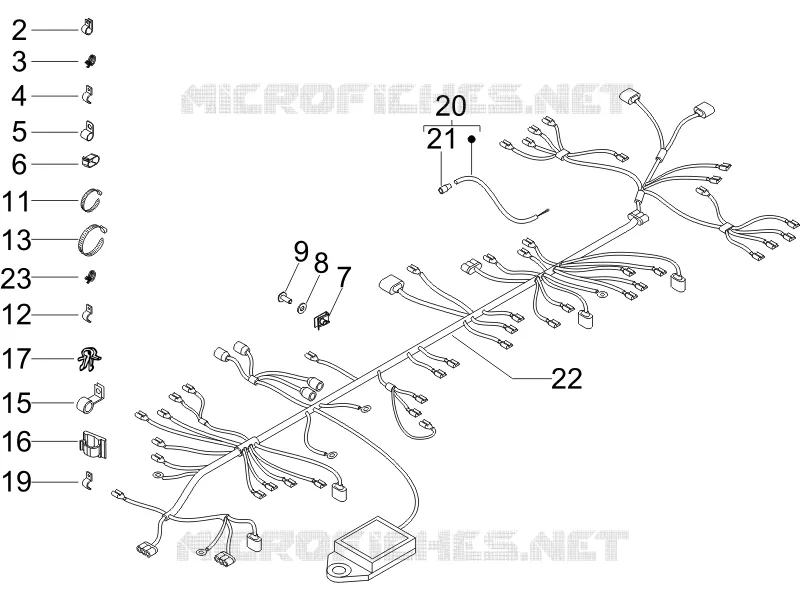

Main cable harness for Nexus -SP- E3 from 2007

Main cable harness

2

Non return spring

CM006902

$0,92 Unit Price incl. VAT

3

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

4

Non return spring l=27

CM006904

$0,25 Unit Price incl. VAT

5

Non return spring L=12

CM006905

$1,35 Unit Price incl. VAT

6

Non return spring L=33

CM006906

$1,26 Unit Price incl. VAT

7

Spring plate

CM017405

$3,65 Unit Price incl. VAT

8

Flat washer 4,2x12x1

013763

$0,08 Unit Price incl. VAT

9

screw

015728

$2,95 Unit Price incl. VAT

10

Hex screw M6x22

031091

$0,17 Unit Price incl. VAT

11

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

12

Elastic spring

231590

$0,25 Unit Price incl. VAT

13

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

14

Self tapping screw M6x35

259708

$3,70 Unit Price incl. VAT

15

Hose clamp

298729

$0,34 Unit Price incl. VAT

16

Spring clamp

577594

$0,42 Unit Price incl. VAT

17

Non return spring

582153

$5,38 Unit Price incl. VAT

18

Bracket

584772

$2,52 Unit Price incl. VAT

19

Hose clamp

638792

$4,82 Unit Price incl. VAT

20

Instrument wiring harness

639764

$19,17 Unit Price incl. VAT

21

Hose clamp

564761

$0,38 Unit Price incl. VAT

22

WIRING HARNESS

639482

Not Available

23

Cap

582172

Not Available

24

Washer

012528

$0,34 Unit Price incl. VAT

25

screw

125647

$3,68 Unit Price incl. VAT

26

Washer

078307

$0,17 Unit Price incl. VAT

27

Screw M6x16

272836

$3,70 Unit Price incl. VAT

28

Washer

012528

$0,34 Unit Price incl. VAT

29

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

30

Fuse 7,5A

252945

$0,42 Unit Price incl. VAT

30

Reed fuse 3a

582930

$4,38 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
