1
Engine displacement
250
2
Model
NEXUS
3
Year
2007
4
Trim
Nexus -SP- E3
5
Parts Catalog

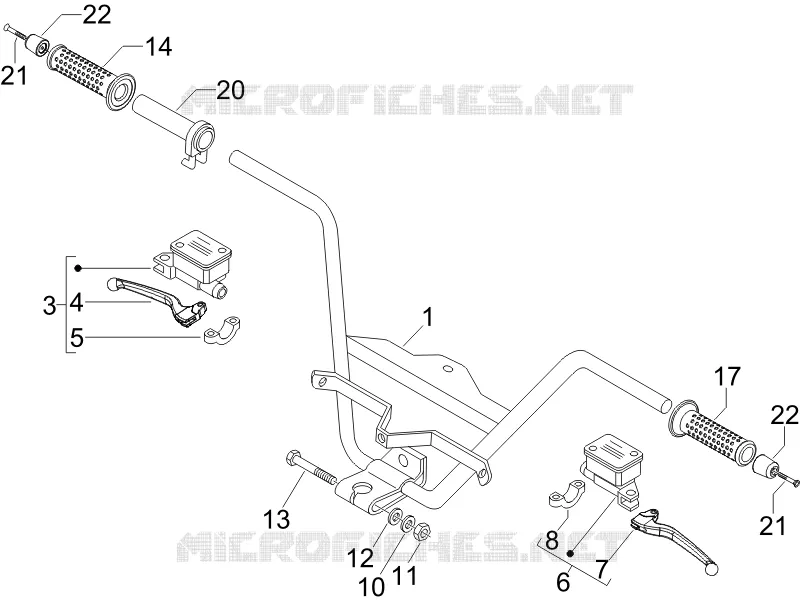

Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Rear headlamps - Turn signal lamps
Handlebars - Master cil.
22
21
22
3
4
5
6
7
13
12
11
10
8
1
21
20
17
14
1
Handlebar
6541635
Not Available
1
HANDLEBAR
6240185
Not Available
1
Handlebar with U.P.
654163
Not Available
3
Brakes pump
CM076302
$161,88 Unit Price incl. VAT
4
Brake lever Heng Tong
600475
$11,82 Unit Price incl. VAT
5
U-bolt Heng Tong
600478
$11,06 Unit Price incl. VAT
6
Brakes pump
CM076303
$161,88 Unit Price incl. VAT
7
Brake lever Heng Tong
600475
$11,82 Unit Price incl. VAT
8
U-bolt Heng Tong
600478
$11,06 Unit Price incl. VAT
10
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
11
Nut M10
015330
$0,25 Unit Price incl. VAT
12
Flat washer
178790
$0,51 Unit Price incl. VAT
13
Hex socket screw
655554
$3,70 Unit Price incl. VAT
13
screw
223605
Not Available
14
RH hand grip
583094
Not Available
17
LH hand grip
581900
Not Available
20
Hose
975633
Not Available
21
screw M6x55
271434
Not Available
22
Anti vib.weight trailing
582034
$14,89 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
