Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Locks
by
Rear suspension - Shock absorber/s
Fuel tank
1
1
2
3
4
5
6
8
9
10
12
13
14
15
16
1
Fuel tank
576544
Not Available
2
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
Washer
078307
$0,17 Unit Price incl. VAT
4
Self locking nut M6
195482
$0,19 Unit Price incl. VAT
5
Flat washer
270216
$2,99 Unit Price incl. VAT
6
Elastic drift
463195
Not Available
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Plug
259832
$1,10 Unit Price incl. VAT
10
Tank cover gasket
258160
$1,00 Unit Price incl. VAT
12
Plate
573580
$5,38 Unit Price incl. VAT
13
Gasket
576542
Not Available
14
Ring nut
576546
$4,71 Unit Price incl. VAT
15
Heat protection
577790
Not Available
16
Elastic spring
231590
$0,25 Unit Price incl. VAT

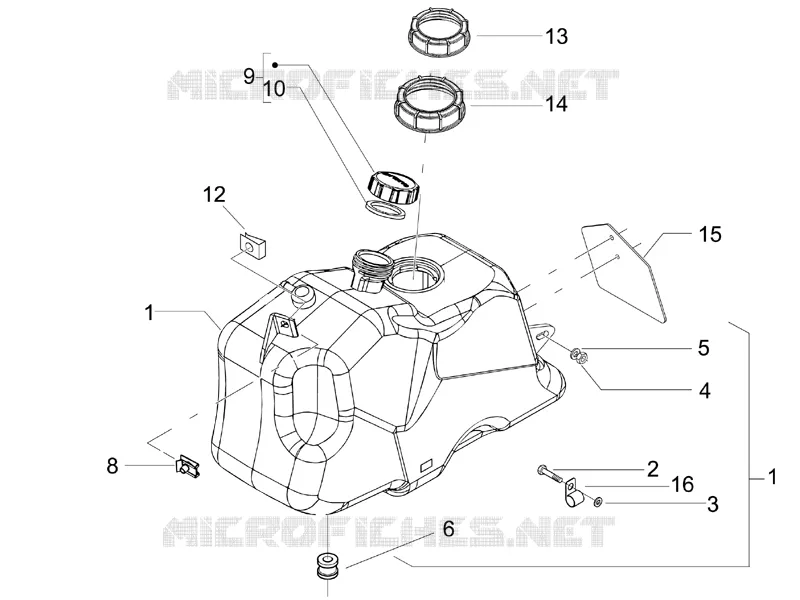

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
