Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog
Locks
6
Parts Diagram
Parts Catalog
Crankcase
by
Fuel tank
Locks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Cylinder with keys
576552
$48,63 Unit Price incl. VAT
2
Hewn key with transponder
575810
$55,57 Unit Price incl. VAT
3
Gasket ring
298731
$0,25 Unit Price incl. VAT
4
Block
577816
$20,60 Unit Price incl. VAT
5
Cylinder retainer spring
298838
$0,51 Unit Price incl. VAT
6
Flat washer
298594
$1,01 Unit Price incl. VAT
7
Lock body
298581
Not Available
8
Immobilizer antenna
828800
Not Available
9
Spring
253937
$0,25 Unit Price incl. VAT
10
Lock lever
575863
$5,38 Unit Price incl. VAT
11
Special screw
299972
$0,50 Unit Price incl. VAT
12
Self locking nut
577620
$0,08 Unit Price incl. VAT
13
Bracket
577194
$8,16 Unit Price incl. VAT
14
Solenoid valve
582990
Not Available
15
Hexagonal-head screw
584121
$0,34 Unit Price incl. VAT
16
Self locking nut
577620
$0,08 Unit Price incl. VAT
17
Joint
577128
$1,01 Unit Price incl. VAT
18
Spring
620415
$4,82 Unit Price incl. VAT
19
Special screw
299972
$0,50 Unit Price incl. VAT
20
Lever
577129
$1,43 Unit Price incl. VAT
21
Spring
577131
$4,82 Unit Price incl. VAT
22
Saddle/flap tightening
CM023704
$24,03 Unit Price incl. VAT
23
Screw M6x16
272836
$3,70 Unit Price incl. VAT
24
Washer
078307
$0,17 Unit Price incl. VAT

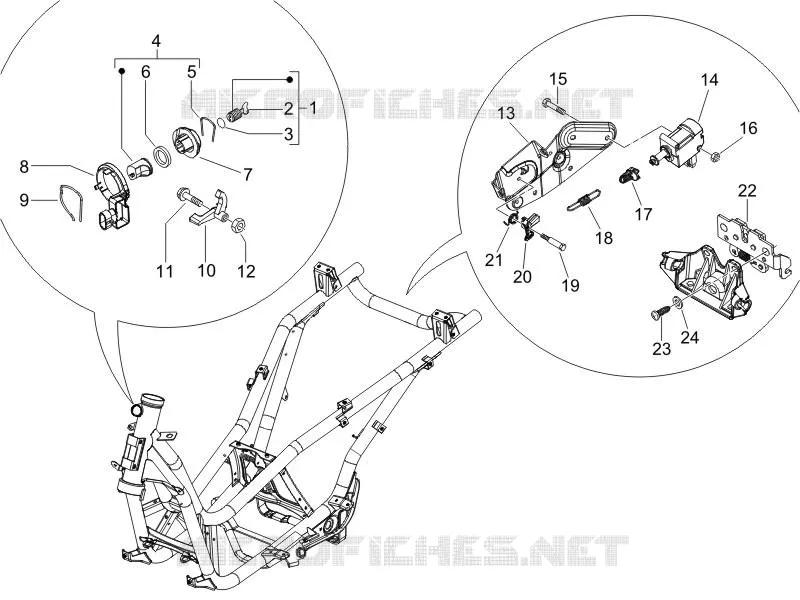

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
